Flanges

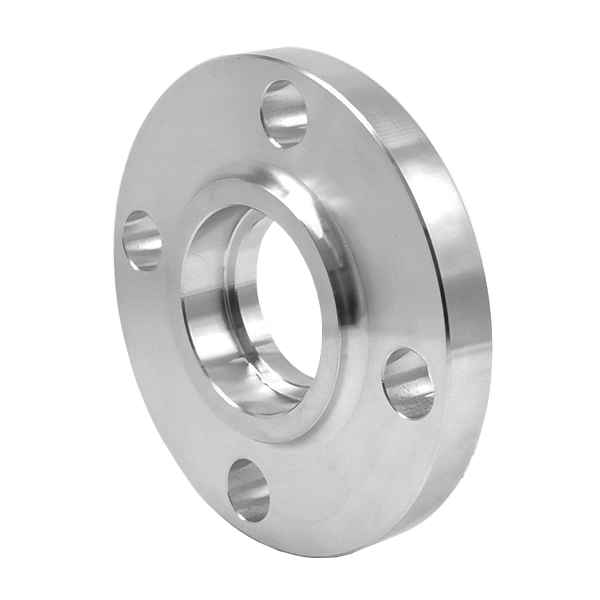

Socket Weld Pipe Flange ANSI150

ASME B16.5, ASTM A182

Features

  • To suit Schedule Pipe
  • Manufactured to ASME B16.5 ANSI150 Standard
  • Forged to ASTM A182
  • Raised Face Socket Weld Flange (RFSW/SWRF)
  • All sharp edges have been chamfered by 0.5 mm at 45°
Code In Stock Inch Size
Code
Metric Size
Code
Grade Thickness A B C D E F G PRC Price QTY Quantity ST Subtotal
SPF15A150-SW 1/2"
SPF15A150-SW
15NB
SPF15A150-SW
F316L 9.6 22.2 90.0 60.3 4x15.88 9.6 14.0 30.0 $58.14
SPF20A150-SW 3/4"
SPF20A150-SW
20NB
SPF20A150-SW
F316L 11.2 27.7 100.0 69.9 4x15.88 11.2 14.0 38.0 $71.40
SPF25A150-SW 1"
SPF25A150-SW
25NB
SPF25A150-SW
F316L 12.7 34.5 110.0 79.4 4x15.88 12.7 16.0 49.0 $75.48
SPF32A150-SW 1 1/4"
SPF32A150-SW
32NB
SPF32A150-SW
F316L 14.3 43.2 115.0 88.9 4x15.88 14.3 19.0 59.0 $75.28
SPF40A150-SW 1 1/2"
SPF40A150-SW
40NB
SPF40A150-SW
F316L 15.9 49.5 125.0 98.4 4x15.88 15.9 21.0 65.0 $146.88
SPF50A150-SW 2"
SPF50A150-SW
50NB
SPF50A150-SW
F316L 17.5 61.9 150.0 120.7 4x19.05 17.5 24.0 78.0 $220.32
