Socket Weld Socket - 3000LB

IMAGE DIAGRAM 3D VIEW

Socket Weld Socket - 3000LB

ASME B16.11, ASTM A182

Features

Also known as a 'Full Coupling'
Socket Weld
Rated to 3000LB Pressure
Manufactured to ASME B16.11, ASTM A182 Standard

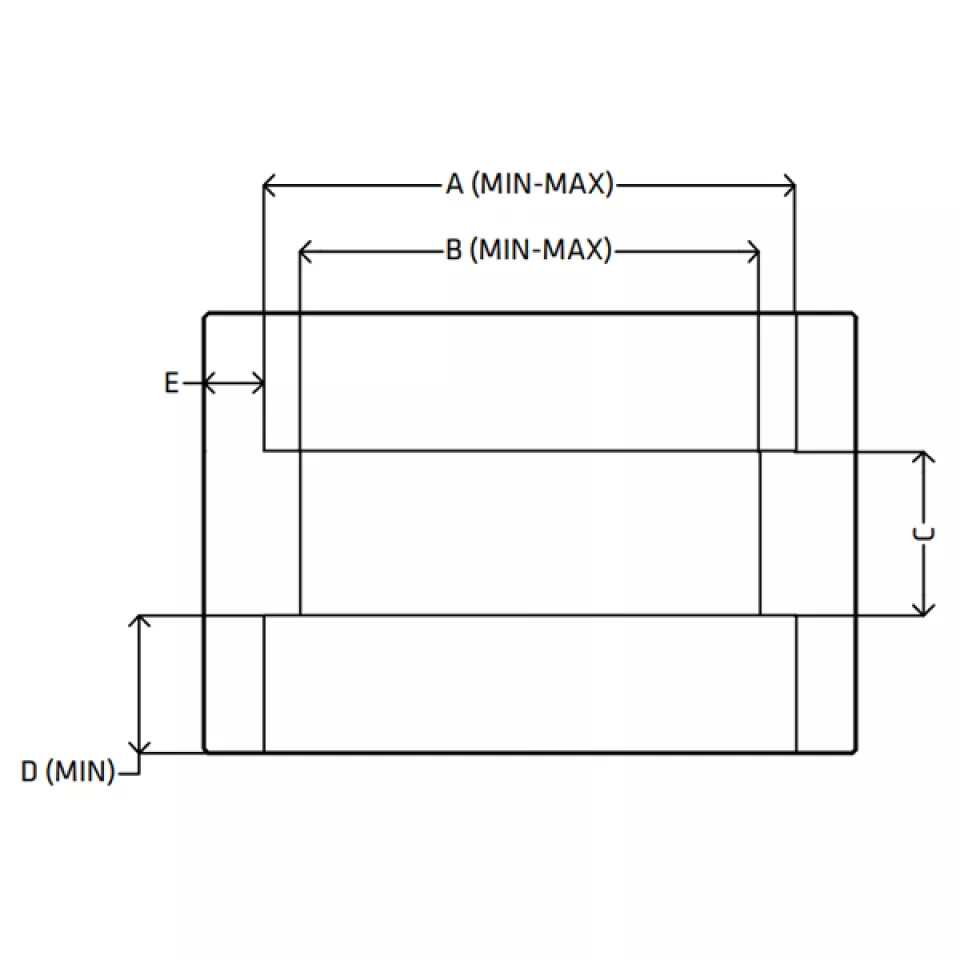

Precise dimensions are not always specified in ASME B16.11, however minimum & maximum dimensions are. Please refer to our diagram to determine these values

Code	In Stock	Inch Size Code	Metric Size Code	Grade	A	B	C	D	E	PRC Price	QTY Quantity	ST Subtotal
SSSW3LB15		1/2" SSSW3LB15	15NB SSSW3LB15	F316/F316L	21.8-22.2	15-16.6	9.5	9.5	4.67	$21.36
SSSW3LB20		3/4" SSSW3LB20	20NB SSSW3LB20	F316/F316L	27.2-27.6	20.2-21.7	9.5	12.5	4.9	$32.41
SSSW3LB25		1" SSSW3LB25	25NB SSSW3LB25	F316/F316L	33.9-34.3	25.9-27.4	12.5	12.5	5.69	$63.25
SSSW3LB32		1 1/4" SSSW3LB32	32NB SSSW3LB32	F316/F316L	42.7-43.1	34.3-35.8	12.5	12.5	6.07	$70.34
SSSW3LB40		1 1/2" SSSW3LB40	40NB SSSW3LB40	F316/F316L	48.8-49.2	40.1-41.6	12.5	12.5	6.35	$108.90
SSSW3LB50		2" SSSW3LB50	50NB SSSW3LB50	F316/F316L	61.2-61.7	51.7-53.3	19.0	16.0	6.93	$130.28
SSSW3LB65		2 1/2" SSSW3LB65	65NB SSSW3LB65	F316/F316L	73.9-74.4	61.2-64.2	19.0	16.0	8.76	$212.16
SSSW3LB80		3" SSSW3LB80	80NB SSSW3LB80	F316/F316L	89.8-90.3	76.4-79.4	19.0	16.0	9.52	$261.12
SSSW3LB100		4" SSSW3LB100	100NB SSSW3LB100	F316/F316L	115.2-115.7	100.7-103.8	19.0	19.0	10.69	$326.40

Related Products

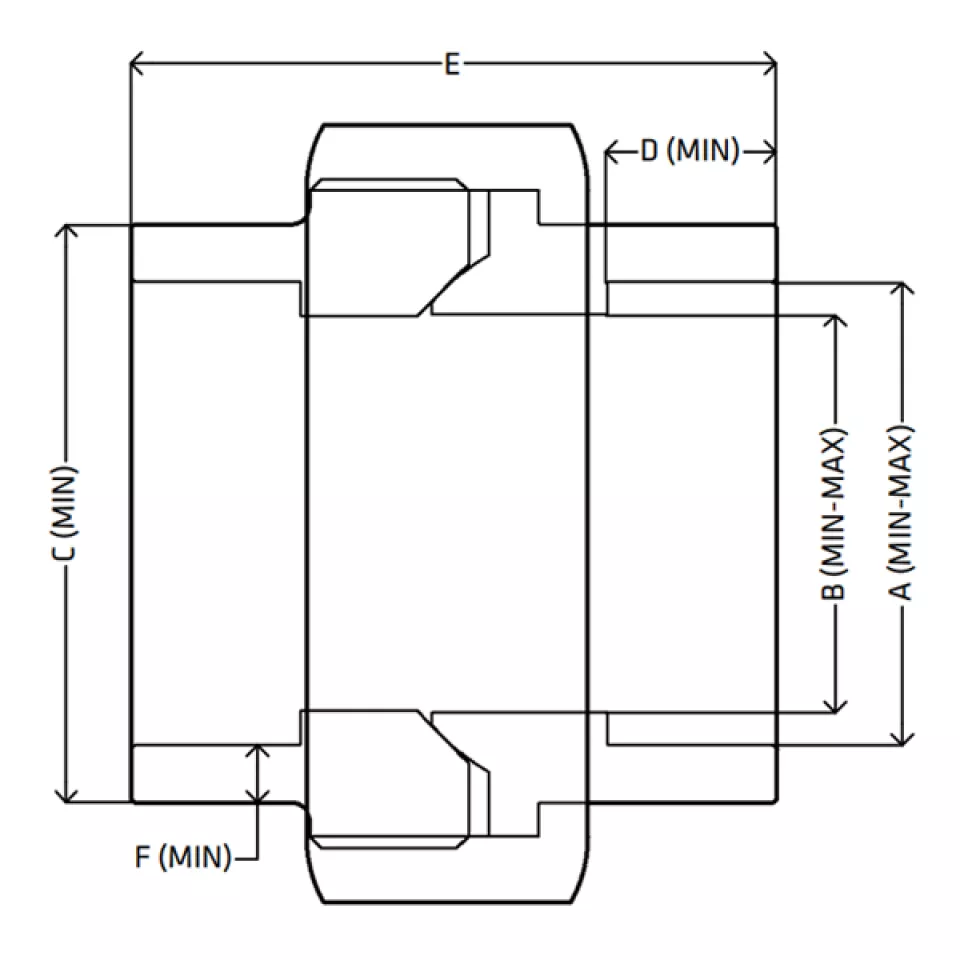

Socket Weld Mac Union - 3000LB

MSS SP 83, ASTM A182

Socket Weld Mac Union - 3000LB

View

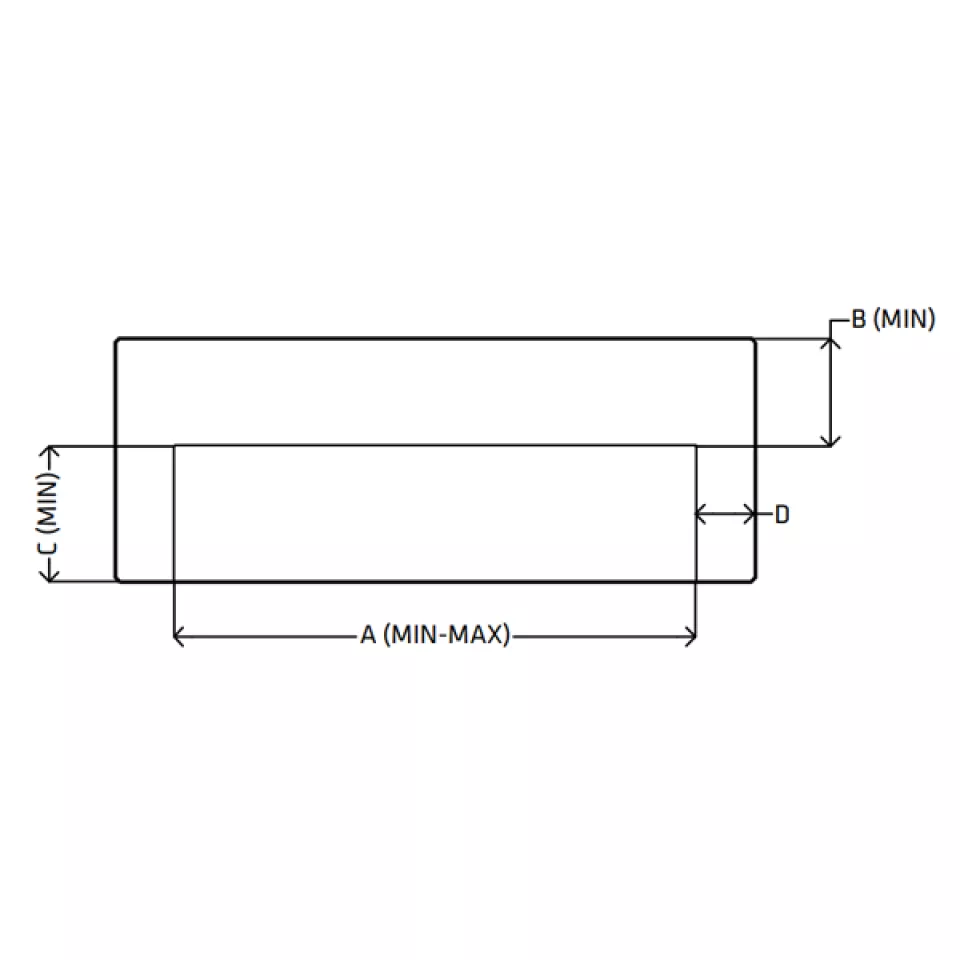

Socket Weld Round Cap - 3000LB

ASME B16.11, ASTM A182

Socket Weld Round Cap - 3000LB

View

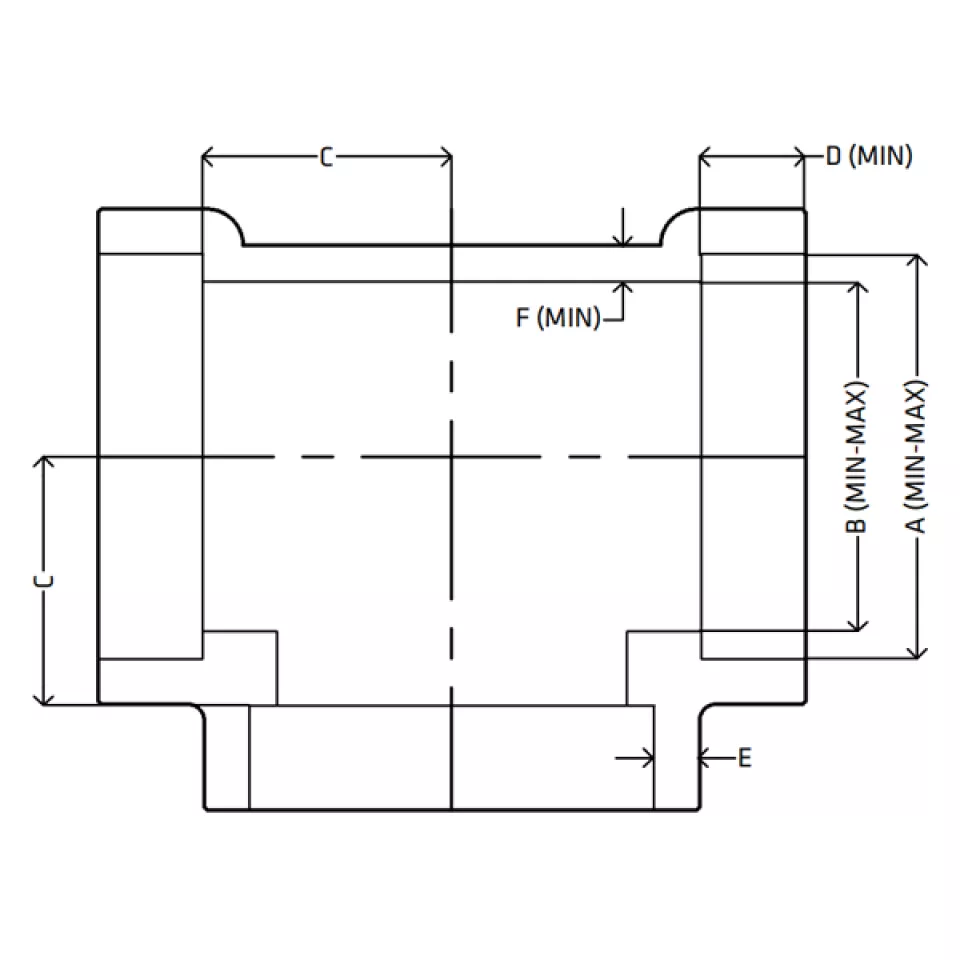

Socket Weld Tee - 3000LB

ASME B16.11, ASTM A182

Socket Weld Tee - 3000LB

View

Socket Weld Socket - 3000LB

ASME B16.11, ASTM A182

Socket Weld Socket - 3000LB

View

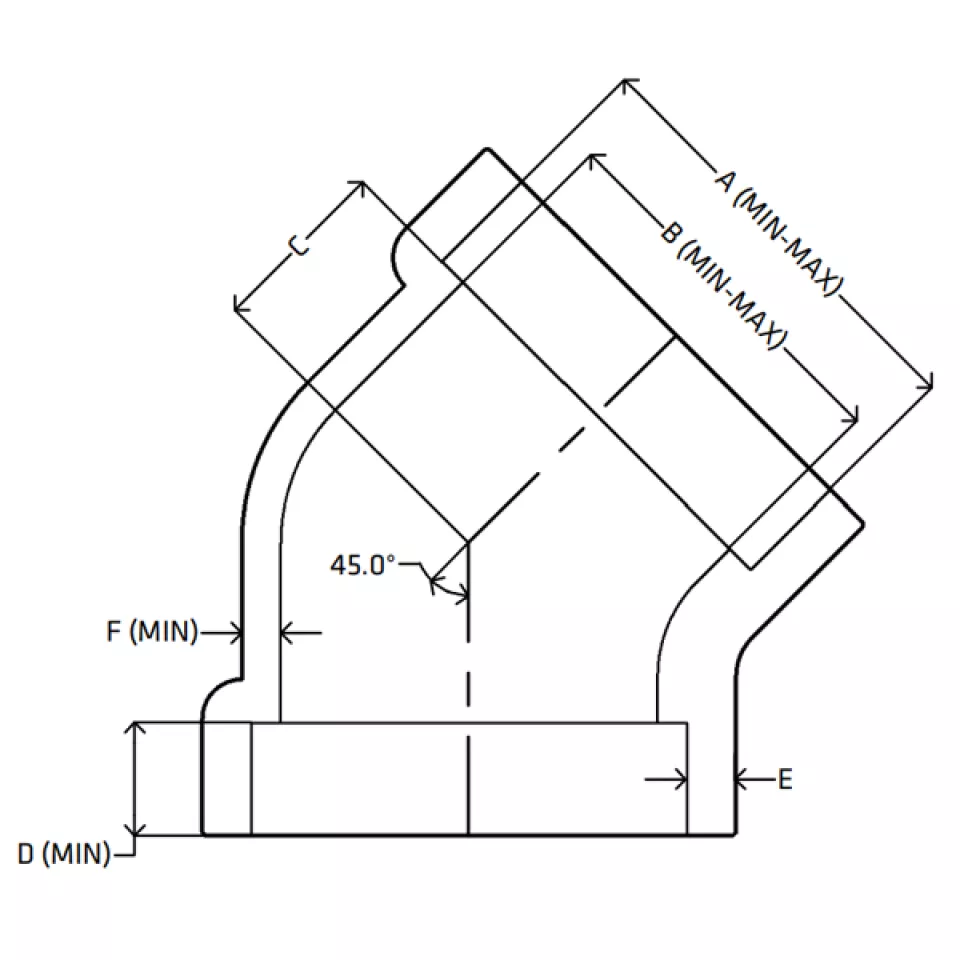

Socket Weld Elbow 45° - 3000LB

ASME B16.11, ASTM A182

Socket Weld Elbow 45° - 3000LB

View

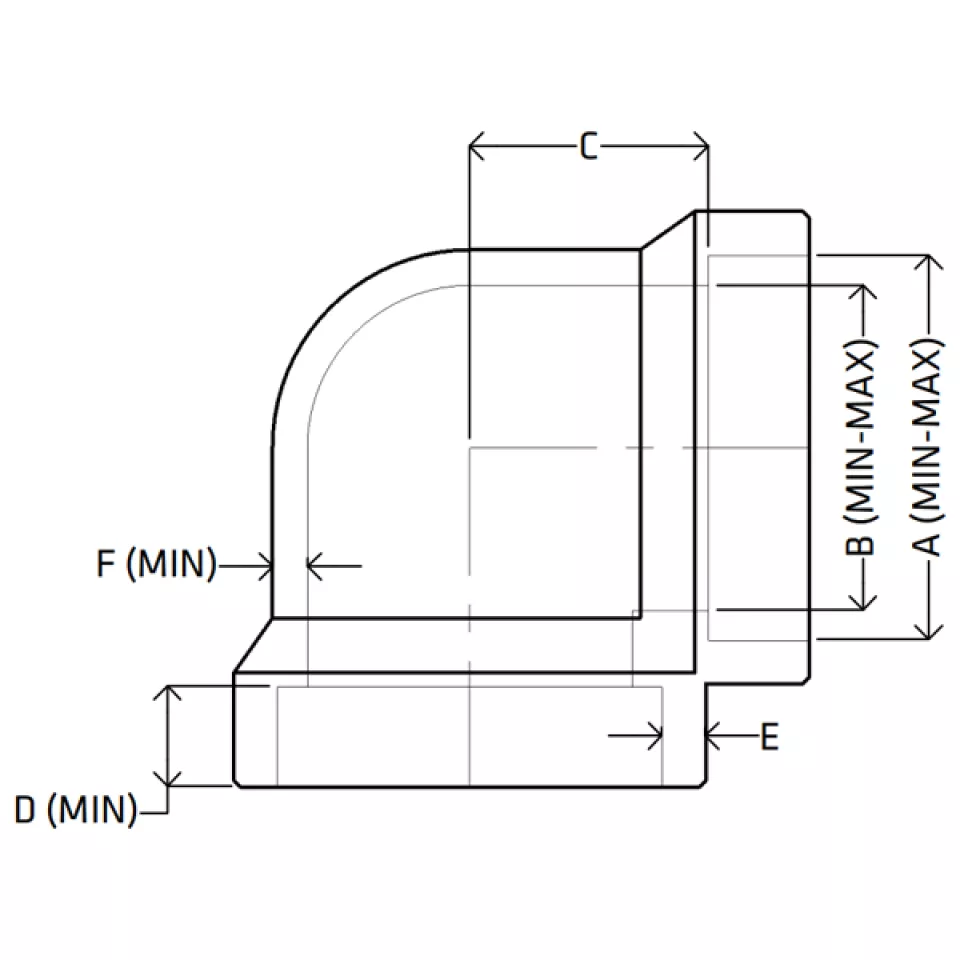

Socket Weld Elbow 90° - 3000LB
