RapidPress Inox Extreme Press-Fit System
RapidPress Extreme Flange Table E
RapidPress Extreme Flange Table E
Features
RapidPress Extreme Coupler - Green FKM Seal
Flange Manufactured to AS2129 Table E Standard (*)
(*) Please note that sizes 22.0x20NB to 42.0x40NB do not meet AS2129 thickness. The thickness has been increased to avoid unacceptable warpage that can occur at standard thickness, as recommended in the standard. These flanges will be denoted as "NON STANDARD".
Flange Forged to ASTM A182 (F316L)
Temperature Rating: -20°C, 220°C
Maximum Operating Pressure: 16 Bar (232 psi)
Related Products

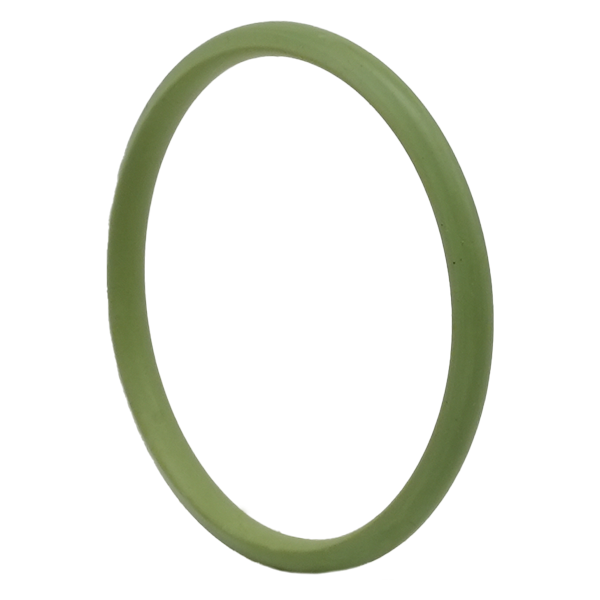

RapidPress O-Ring FKM Seal
RapidPress O-Ring FKM Seal
Features
FKM O-Ring - Green
Typically used with Compresed Air & Oils
Patented seal ring with lenticular profile which fits the press crimp groove which provides a 20% enlargement of the sealing surface
Fit makes the pipes insertion easier
VIEW DIMENSIONS
RapidPress Startup Kit
RapidPress Startup Kit
Features
Kit inlcudes:
Orbital Tube Cutter, Deburrer, Depth Gauge and our RapidPress Technical Manual.
RapidPress ACO203 Complete Set 15-54
RapidPress ACO203 Complete Set 15-54
Features
Tool comes with full set of compatible pressing heads
Press sizes from 15.0mm to 54.0mm
Work light for safe working
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
VIEW DIMENSIONS
RapidPress ACO203XL Complete Set 15-108
RapidPress ACO203XL Complete Set 15-108
Features
Tool comes with full set of compatible Pressing Heads (excludes 88.9mm Pressing Head)
Press sizes from 15.0mm to 108.0mm
Rotatable head
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
RapidPress ACO203XL 15-108 Tool
RapidPress ACO203XL 15-108 Tool
Features
*Tool, Battery, Charger and Case only*
Press sizes from 15.0mm to 108.0mm
Rotatable head
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
Ask us about our ex hire tools available for purchase!
VIEW DIMENSIONS

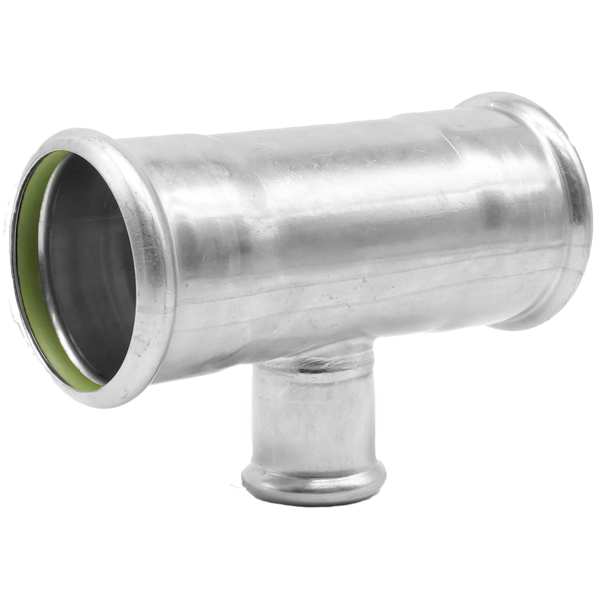

RapidPress Extreme Reducing Tee
RapidPress Extreme Reducing Tee
Features
FKM Seals
Reduced diameter centre leg
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
EPDM and Gas Rated options available
VIEW DIMENSIONS

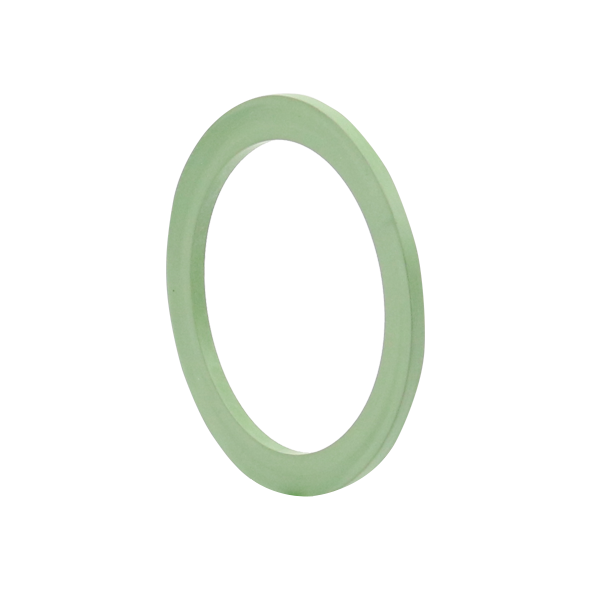

RapidPress Union FKM Flat Washer
RapidPress Union FKM Flat Washer
Features
FKM Union Flat Washer - Green
For use with RapidPress Unions
For Unions *with* Male BSP or Female BSP ends, please see our RapidPress EPDM M/F Union Flat Washer
VIEW DIMENSIONS
FlexiFlow Hose with RapidPress Extreme Couplers
FlexiFlow Hose with RapidPress Extreme Couplers
Features
**Please allow 1-2 days lead time for fabrication**
FlexiFlow Stainless Steel Convoluted Braided Hose
Connections: RapidPress Extreme Couplers (FKM)
Hose Test Standard: ISO 10380-2012
Hose Designation: TYPE 1-10
Click 'View Dimensions' for the following information:
E = Static/Flexing Minimum Bend Radius (mm)
F = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
VIEW DIMENSIONS
RapidPress Bossed Clamp
RapidPress Bossed Clamp
Features
M10 Boss (17mm long)
Clamp to suit RapidPress Tube
Includes Stainless Steel Metric Fasteners
Smaller sizes are available as Saddles
VIEW DIMENSIONS

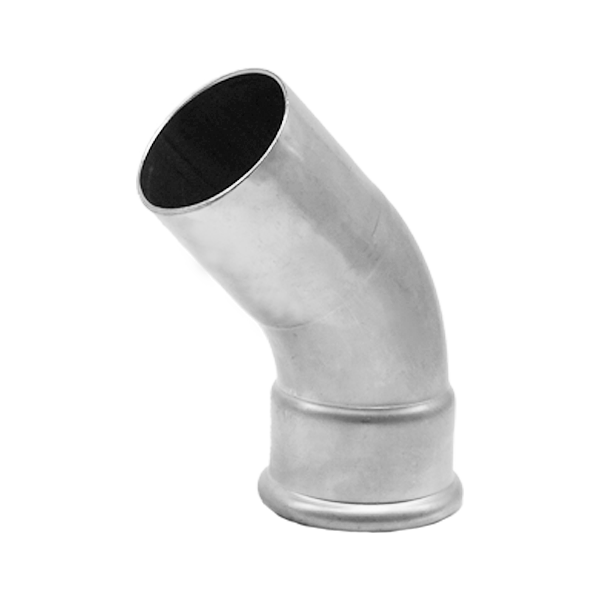

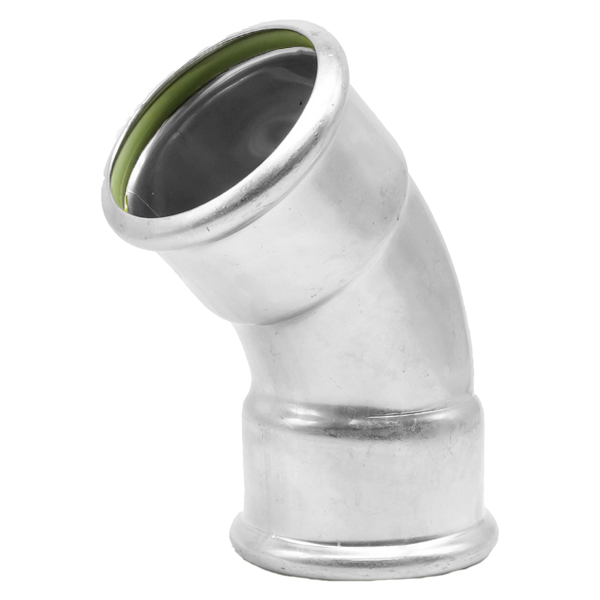

RapidPress Extreme Bend 45°
RapidPress Extreme Bend 45°
Features
FKM Seals
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS
RapidPress ACO203 15-54 Tool
RapidPress ACO203 15-54 Tool
Features
*Tool, Battery, Charger and Case only*
Press sizes from 15.0mm to 54.0mm
Work light for safe working
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
Ask us about our ex hire tools available for purchase!
VIEW DIMENSIONS
RapidPress Pressing Head Set 76.1-108
RapidPress Pressing Head Set 76.1-108
Features
Full set of Pressing Heads and Adapters from 76.1-108.0 (excludes 88.9mm Pressing Head)
Comes with it's own carrying case
M-Profile
RapidPress Deburrer Tool
RapidPress Deburrer Tool
Features
Suitable for deburring both pipe/tube internals and externals
Can be used with Stainless Steel, Copper, Brass, Aluminium, Plastic and more
VIEW DIMENSIONS
RapidPress M/F Union FKM Flat Washer
RapidPress M/F Union FKM Flat Washer
Features
FKM Flat Washer - Green
For use with RapidPress Male BSP Unions and Female BSP Unions
For standard RapidPress Union Gaskets *without BSP ends* please see our RapidPress FKM Union Flat Washer
VIEW DIMENSIONS
RapidPress Bossed Saddle
RapidPress Bossed Saddle
Features
M10 Boss (17mm long)
Saddle to suit RapidPress Tube
Includes Stainless Steel Metric Fasteners
Larger sizes are available as Clamps
VIEW DIMENSIONS
RapidPress Depth Gauge
RapidPress Depth Gauge
Features
Depth Gauge for sizes 15mm to 168.3mm
To ensure a correctly inserted joint, the tube must be witness marked with a fine-point/felt-tip pen where it meets the fitting using the depth gauge so that full insertion can be verified
VIEW DIMENSIONS
RapidPress Inox Press-Fit Tube
EN10312/EN10217-7
RapidPress Inox Press-Fit Tube
EN10312/EN10217-7
Features
Suitable for all uses except for with potable water. For potable water capabilites, please see our RapidPress Inox Watermark Approved Press-Fit Tube (RapidPress Inox Press-Fit Tube (WM))
Manufactured to EN10312/EN10217-7
180 Grit Finish
6 metre lengths. Purchase per metre (enter quantity as '6' for 1 length)
VIEW DIMENSIONS

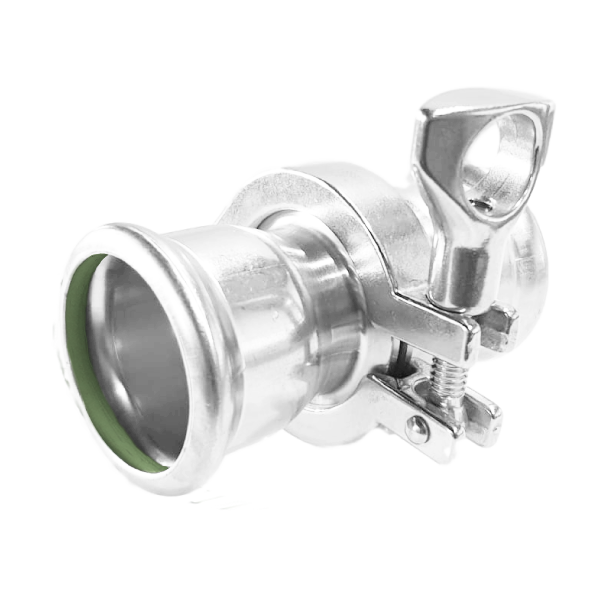

RapidPress Extreme Union with Tri Clover
RapidPress Extreme Union with Tri Clover
Features
FKM Seals
Complete Set including: RapidPress Tri Clover Adapter (x2), Tri Clover Clamp (304) and Tri Clover Seal
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
EPDM options available
VIEW DIMENSIONS

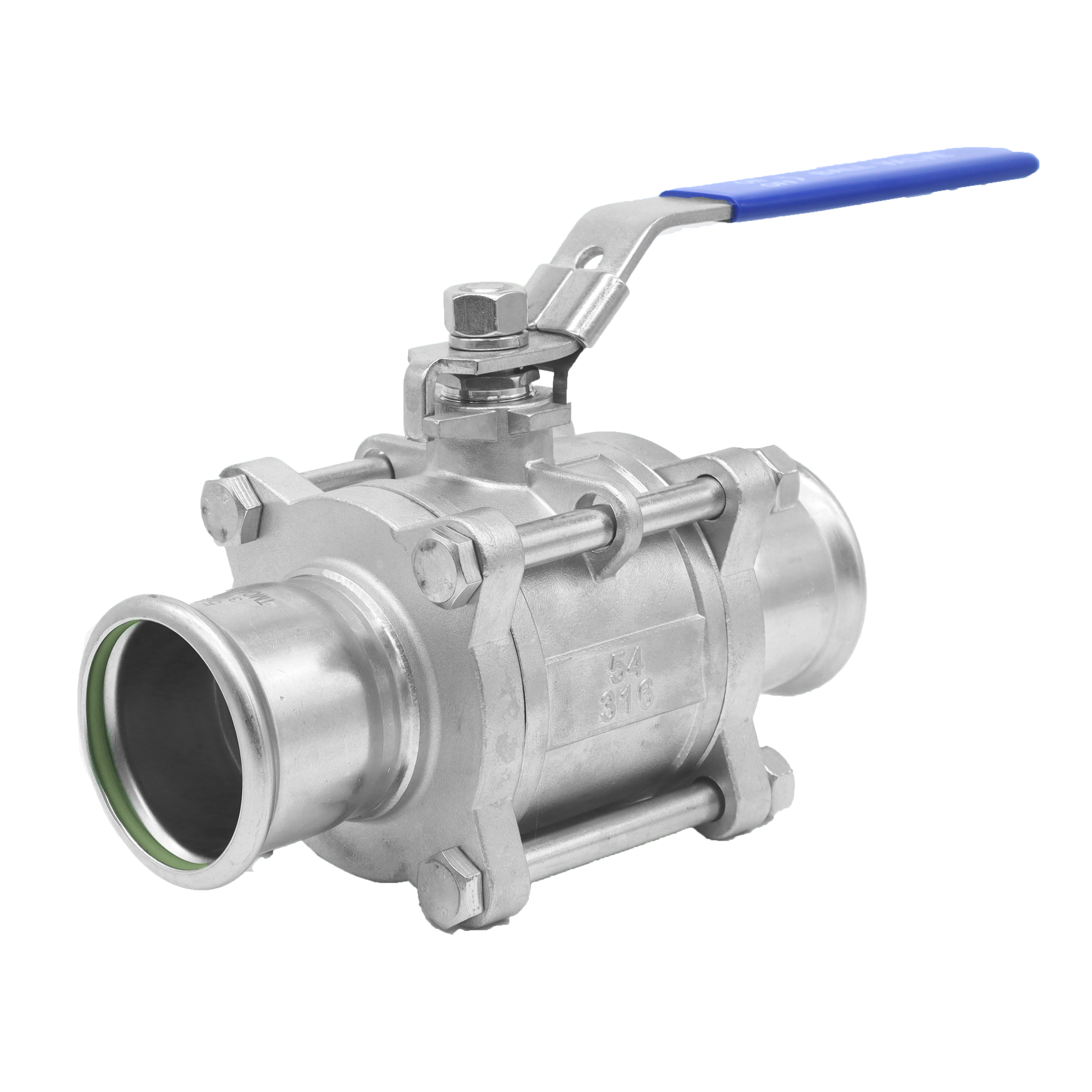

RapidPress Extreme 3pc Ball Valve
RapidPress Extreme 3pc Ball Valve
Features
FKM Seals
RapidPress Coupler Connections
Full Port
Lockable latch handle
Temperature Rating: -20°C, 220°C
Red handle sleeves available for purchase
EPDM options available
VIEW DIMENSIONS
RapidPress Extreme Flange PN10-40
RapidPress Extreme Flange PN10-40
Features
RapidPress Extreme Coupler - Green FKM Seal
Flange Manufactured to EN1092-1 PN10/16/40 Type 01/A Standard (*)
(*) To determine the flange spec, please refer to the end of the code as shown in between stars (RPF28*PN10-40*V). Please note, stars are for visual purposes of this example only.
Flange Forged to EN10222-5 (1.4404 (F316L))
Temperature Rating: -20°C, 220°C
Maximum Operating Pressure: 16 Bar (232 psi)
VIEW DIMENSIONS
RapidPress Pressing Heads & Adapters 76.1-108
RapidPress Pressing Heads & Adapters 76.1-108
Features
M-Profile
Adapter Jaw (AJ76108) required for use of the 76.1mm & 88.9mm Pressing Head. Also for the initial press for 108.0mm Pressing Head
Adapter Jaw (AJ108) required for the secondary press for the 108.0mm Pressing Head
VIEW DIMENSIONS
RapidPress Inox Press-Fit Tube (WM)
EN10312/EN10217-7
RapidPress Inox Press-Fit Tube (WM)
EN10312/EN10217-7
Features
Watermark Approved for use with potable water. If potable water applications are not required, please see our RapidPress Inox Press-Fit Tube
Manufactured to EN10312/EN10217-7
180 Grit Finish
6 metre lengths. Purchase per metre (enter quantity as '6' for 1 length)
VIEW DIMENSIONS

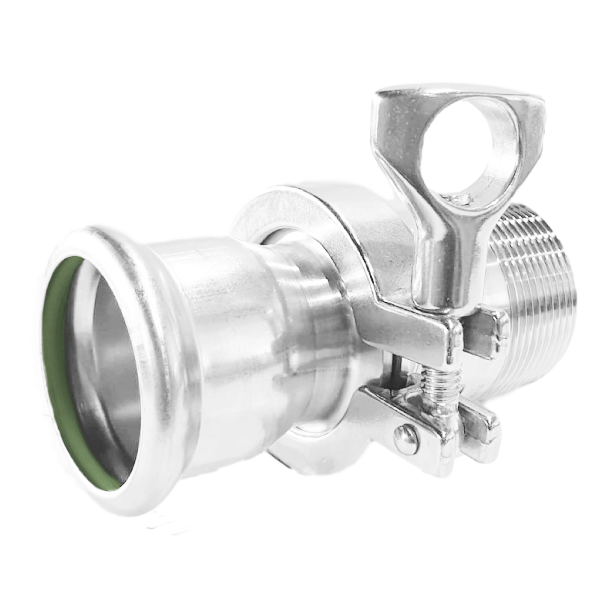

RapidPress Extreme to Male BSP Union with Tri Clover
RapidPress Extreme to Male BSP Union with Tri Clover
Features
FKM Seals
Complete Set including: RapidPress to Tri Clover Adapter, BSP Nipple to Tri Clover Adapter, Tri Clover Clamp (304) and Tri Clover Seal
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
EPDM options available
VIEW DIMENSIONS
RapidPress Rotary Tube Cutter Blade
RapidPress Rotary Tube Cutter Blade
Features
Replacement wheel blade to suit the RapidPress Rotary Tube Cutter
Suitable for Stainless Steel, Copper and Aluminium tubing
Suitable for sizes from 15mm to 76.2
VIEW DIMENSIONS

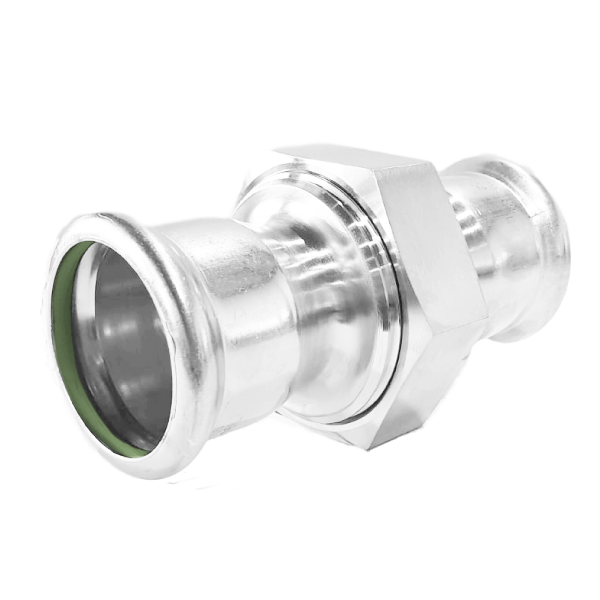

RapidPress Extreme Union with RJT
RapidPress Extreme Union with RJT
Features
FKM Seals
Complete Set including: RapidPress to RJT Male Adapter, RapidPress to RJT Female Adapter, RJT Hex Nut (304) and RJT Stepped Seal
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
EPDM options available
VIEW DIMENSIONS

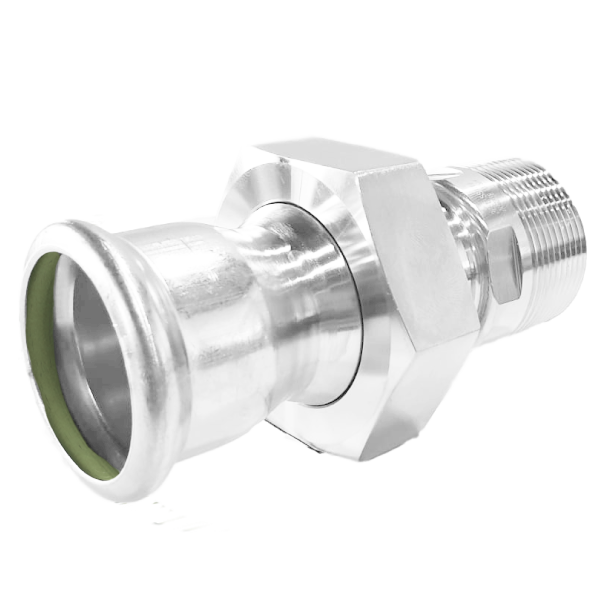

RapidPress Extreme to Male BSP Union with RJT
RapidPress Extreme to Male BSP Union with RJT
Features
FKM Seals
Complete Set including: RapidPress to RJT Female Adapter, BSP Nipple to RJT Male Adapter, RJT Hex Nut (304) and RJT Stepped Seal
Temperature rating: -20°C, 220°C
Maximum operating pressure: 16 Bar (232psi)
EPDM options available
VIEW DIMENSIONS
RapidPress Extreme Flange ANSI150
RapidPress Extreme Flange ANSI150
Features
RapidPress Extreme Coupler - Green FKM Seal
Flange Manufactured to ASME B16.5 ANSI150 Standard (*)
(*) Please note that these flanges are Non Hubbed and Flat Faced. These flanges will be denoted as "NON STANDARD".
Flange Forged to ASTM A182 (F316L)
Temperature Rating: -20°C, 220°C
Maximum Operating Pressure: 16 Bar (232 psi)
VIEW DIMENSIONS
