RapidPress Press-Fit

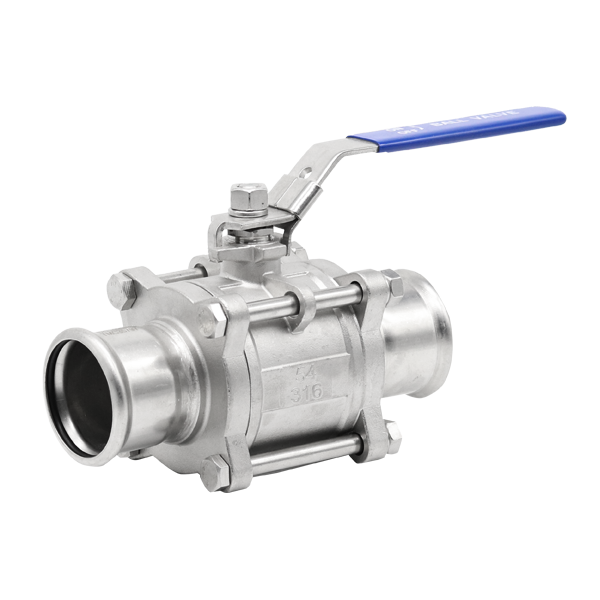

RapidPress 3pc Ball Valve
RapidPress 3pc Ball Valve
Features
EPDM Seals
RapidPress Coupler Connections
Full Port
Lockable latch handle
Temperature Rating: -20°C, 120°C
Red handle sleeves available for purchase
RapidPress Extreme options available
**Please note: 76.1x65NB has been fabricated from a standard 65NB BSP Ball Valve and two 76.1 RapidPress Weld Couplers**
Related Products

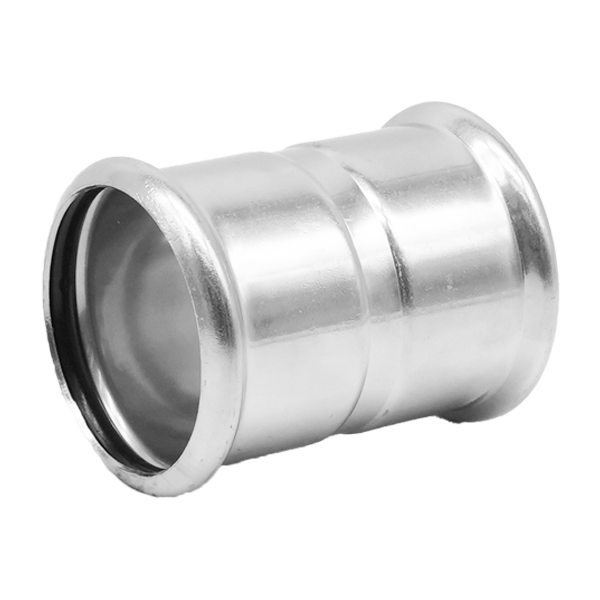

RapidPress Coupler
RapidPress Coupler
Features
EPDM Seals
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

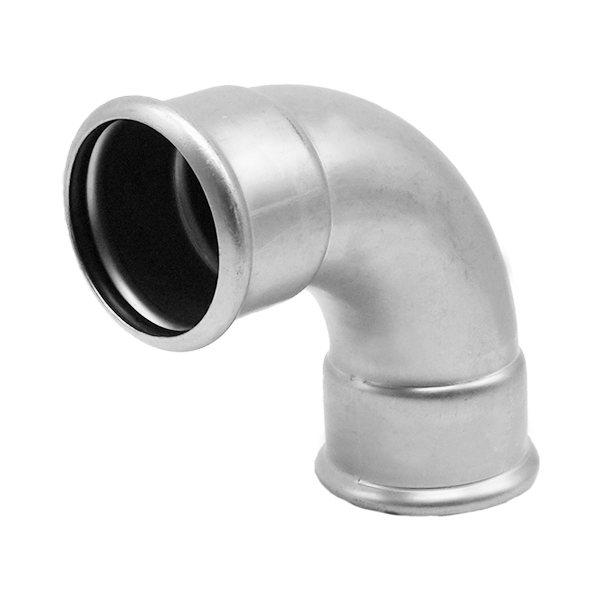

RapidPress Bend 90°
RapidPress Bend 90°
Features
EPDM Seals
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

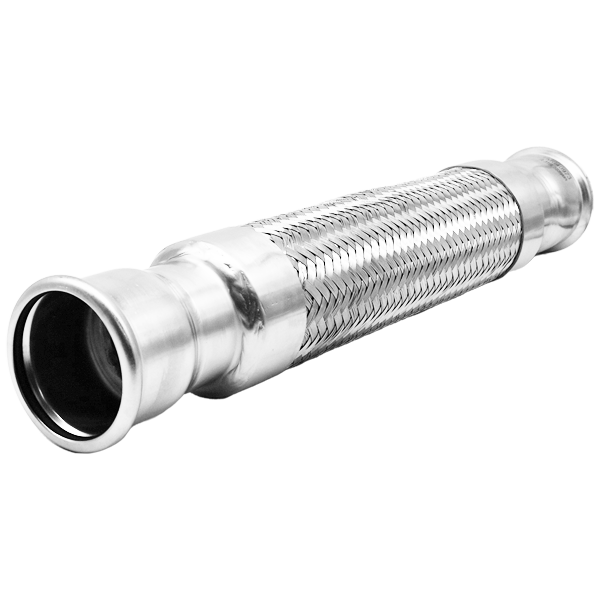

FlexiFlow Hose with RapidPress Couplers
FlexiFlow Hose with RapidPress Couplers
Features
**Please allow 1-2 days lead time for fabrication**
FlexiFlow Stainless Steel Convoluted Braided Hose
Connections: RapidPress Couplers
Hose Test Standard: ISO 10380-2012
Hose Designation: TYPE 1-10
Click 'View Dimensions' for the following information:
E = Static/Flexing Minimum Bend Radius (mm)
F = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*
VIEW DIMENSIONS

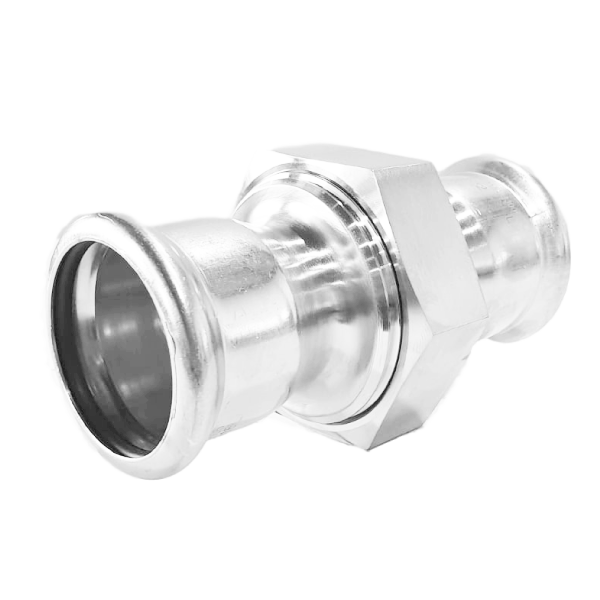

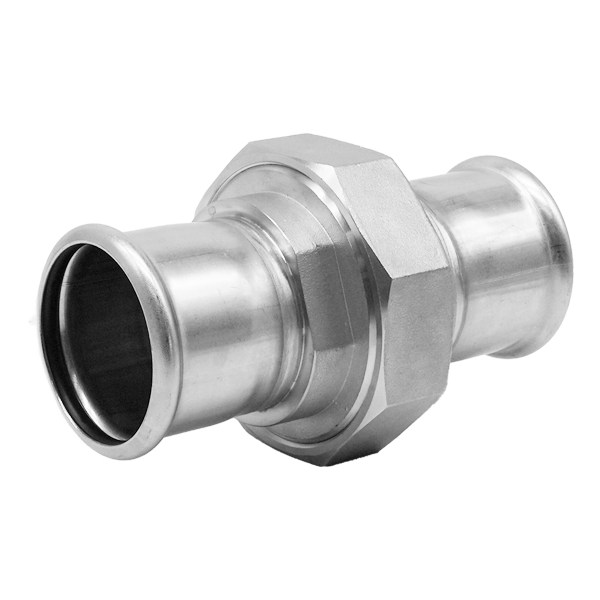

RapidPress Union
RapidPress Union
Features
EPDM Seals
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
RapidPress Extreme options available
VIEW DIMENSIONS

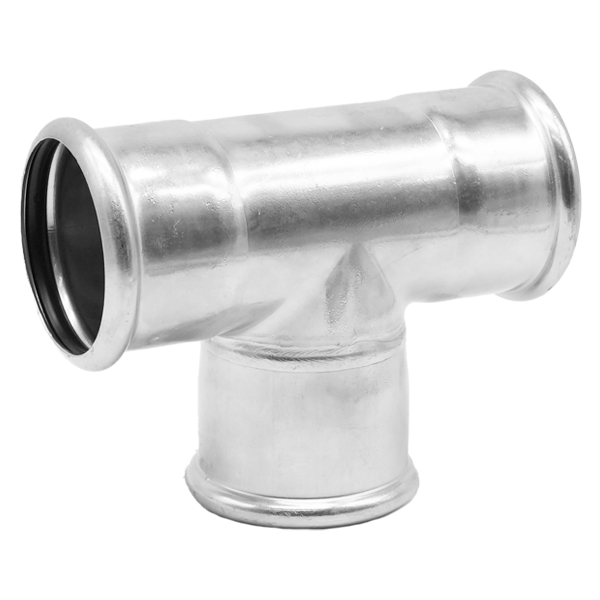

RapidPress Equal Tee
RapidPress Equal Tee
Features
EPDM Seals
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS
RapidPress Flange Table E
RapidPress Flange Table E
Features
EPDM Seal
Dimensional Standard: AS2129
Please note: Sizes from 22, 28 and 42 are not manufactured to AS2129 Standard, as the thickness exceeds standard to avoid unacceptable warpage that may occur at standard AS2129 thickness.
Flanges are forged to: ASTM A182
Temperature rating: -20°C, 120°C
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

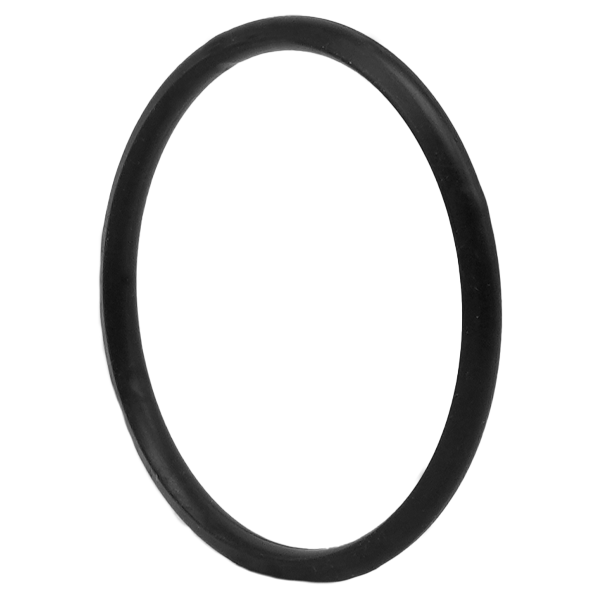

RapidPress O-Ring EPDM Seal
RapidPress O-Ring EPDM Seal
Features
EPDM O-Ring - Black
Typically used with Potable Water, Heating, Cooling/Refridgeration, Treated Water, Desalinated Water, Rainwater, Compressed Air
Certificates/Approvals: KTW, W 270, DVGW W 534
Patented seal ring with lenticular profile which fits the press crimp groove which provides a 20% enlargement of the sealing surface
Fit makes the pipes insertion easier
VIEW DIMENSIONS

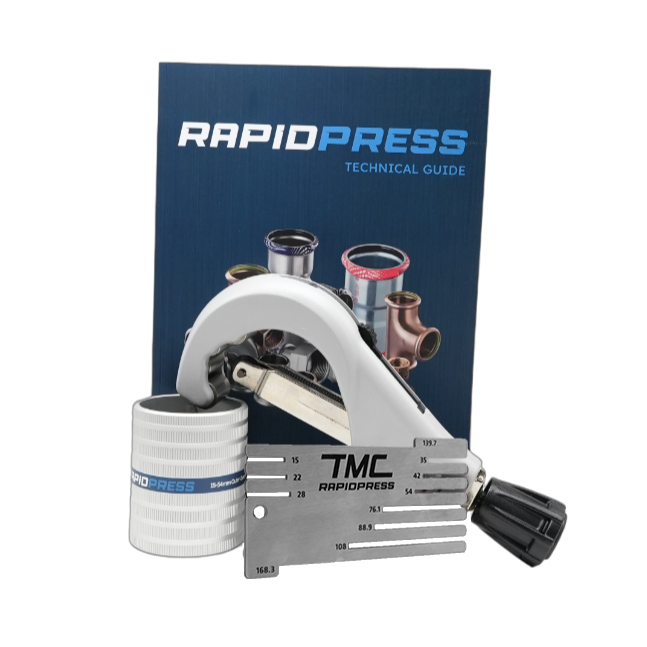

RapidPress Startup Kit
RapidPress Startup Kit
Features
Kit inlcudes:
Orbital Tube Cutter, Deburrer, Depth Gauge and our RapidPress Technical Manual.

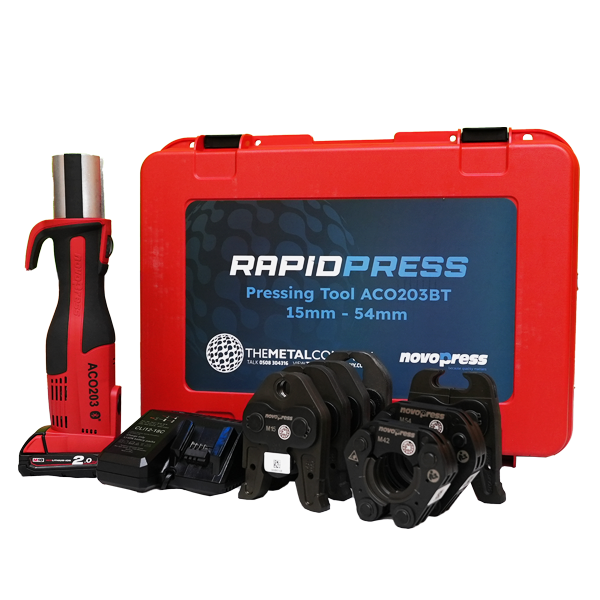

RapidPress ACO203 Complete Set 15-54
RapidPress ACO203 Complete Set 15-54
Features
Tool comes with full set of compatible pressing heads
Press sizes from 15.0mm to 54.0mm
Work light for safe working
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology

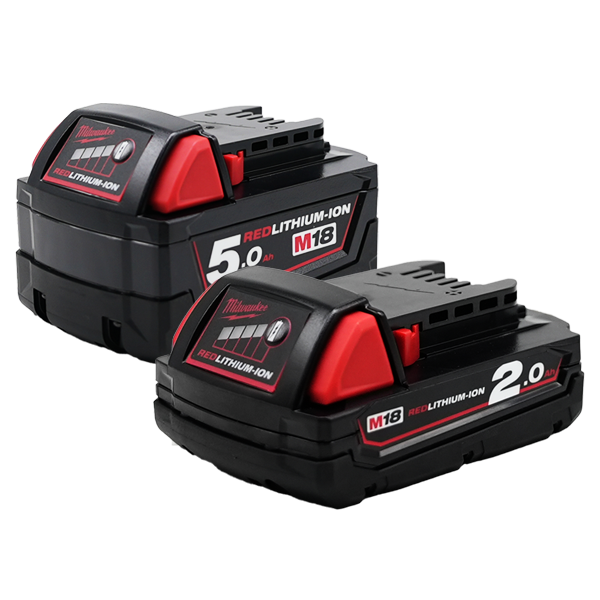

Runs Milwaukee® M18™ Battery

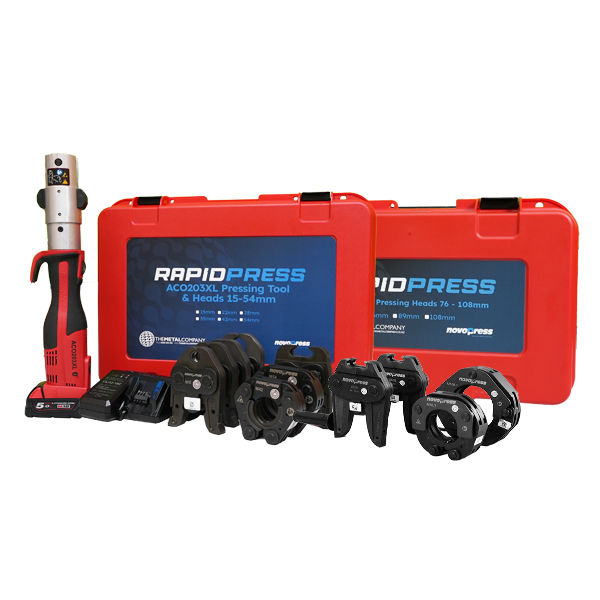

RapidPress ACO203XL Complete Set 15-108
RapidPress ACO203XL Complete Set 15-108
Features
Tool comes with full set of compatible Pressing Heads (excludes 88.9mm Pressing Head)
Press sizes from 15.0mm to 108.0mm
Rotatable head
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery

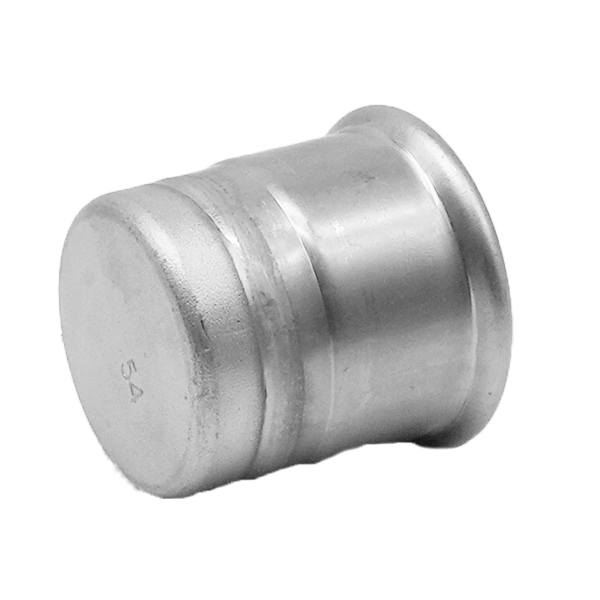

RapidPress End Cap
RapidPress End Cap
Features
EPDM Seal
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

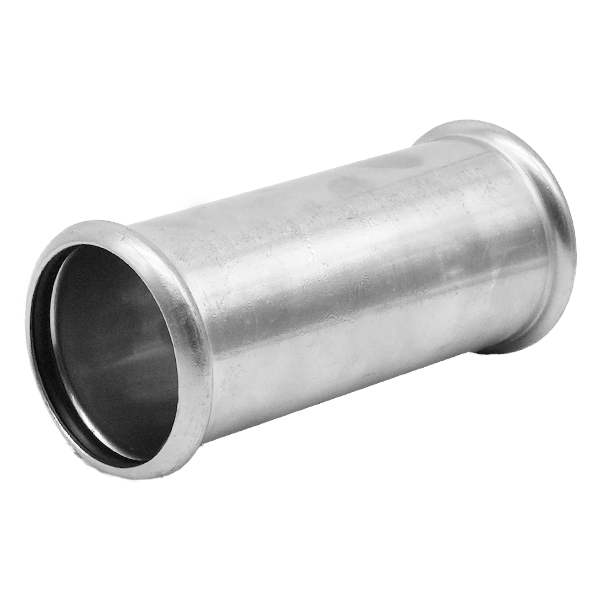

RapidPress Slip Coupler
RapidPress Slip Coupler
Features
EPDM Seals
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

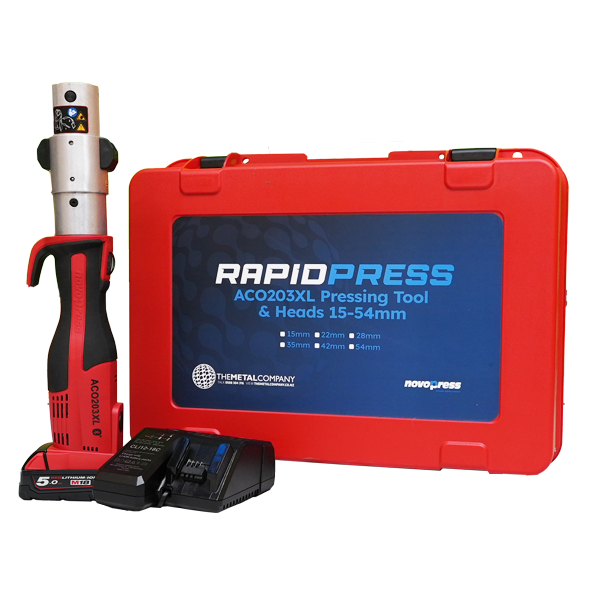

RapidPress ACO203XL 15-108 Tool
RapidPress ACO203XL 15-108 Tool
Features
*Tool, Battery, Charger and Case only*
Press sizes from 15.0mm to 108.0mm
Rotatable head
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
Ask us about our ex hire tools available for purchase!

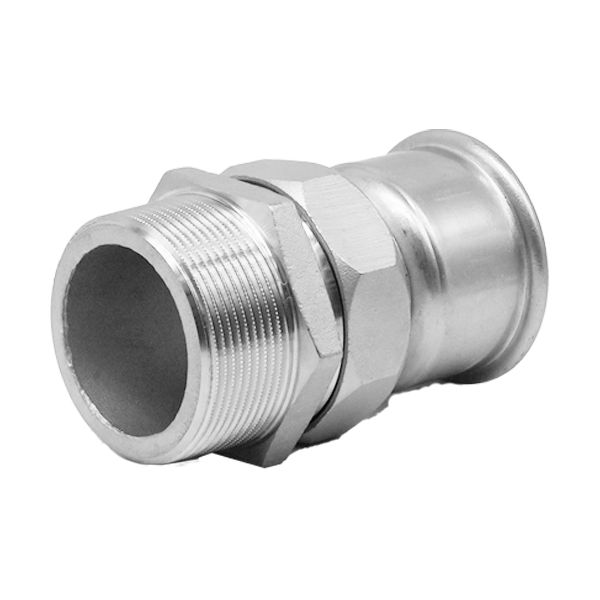

RapidPress Male BSP Union
RapidPress Male BSP Union
Features
EPDM Seals
Male BSP End
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

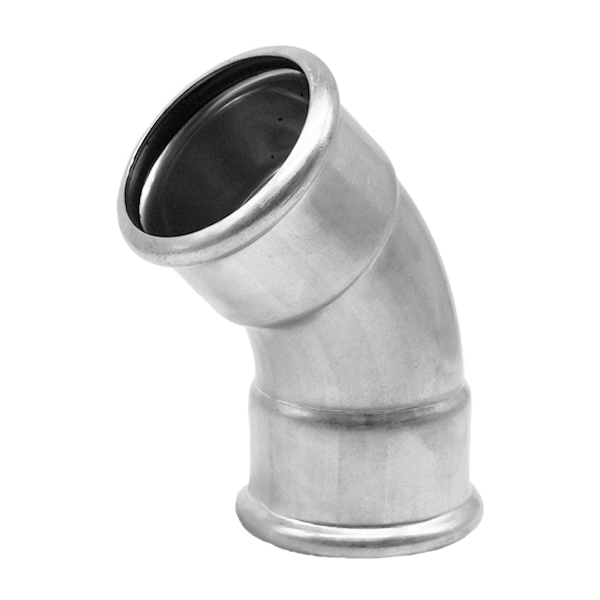

RapidPress Bend 45°
RapidPress Bend 45°
Features
EPDM Seals
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS
RapidPress Union EPDM Flat Washer
RapidPress Union EPDM Flat Washer
Features
EPDM Union Flat Washer - Black
For use with RapidPress Unions
For Unions *with* Male BSP or Female BSP ends, please see our RapidPress EPDM M/F Union Flat Washer
VIEW DIMENSIONS

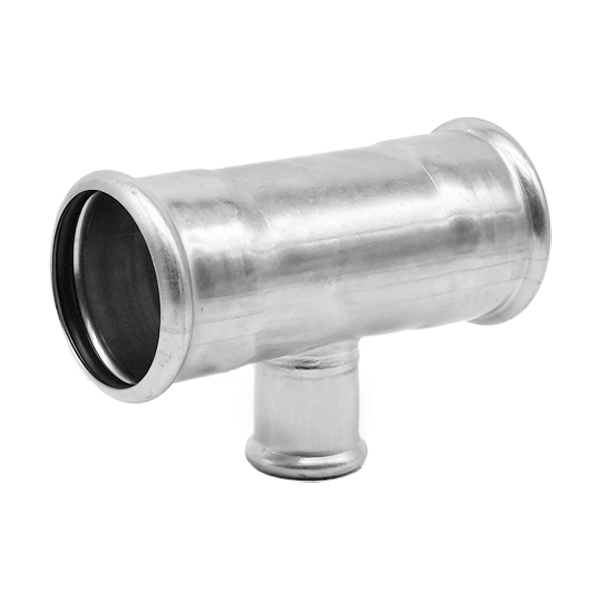

RapidPress Reducing Tee
RapidPress Reducing Tee
Features
EPDM Seals
Reduced diameter centre leg
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS
RapidPress Bossed Clamp
RapidPress Bossed Clamp
Features
M10 Boss (17mm long)
Clamp to suit RapidPress Tube
Includes Stainless Steel Metric Fasteners
Smaller sizes are available as Saddles
VIEW DIMENSIONS

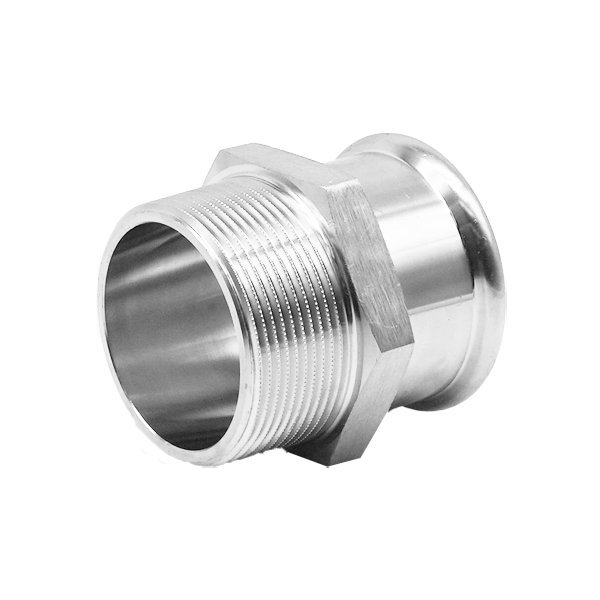

RapidPress Male BSP Coupler
RapidPress Male BSP Coupler
Features
EPDM Seal
Male BSP End
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

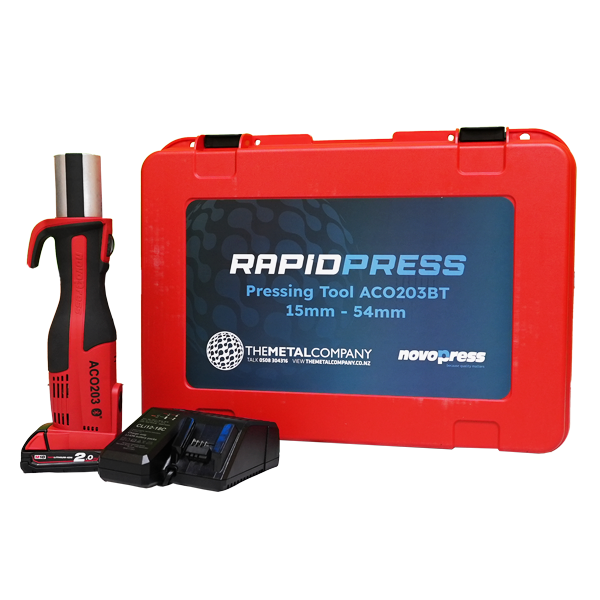

RapidPress ACO203 15-54 Tool
RapidPress ACO203 15-54 Tool
Features
*Tool, Battery, Charger and Case only*
Press sizes from 15.0mm to 54.0mm
Work light for safe working
Analysis of tool performance via NovoCheck app
Data transfer via Bluetooth®
Brushless Motor Technology
Runs Milwaukee® M18™ Battery
Ask us about our ex hire tools available for purchase!

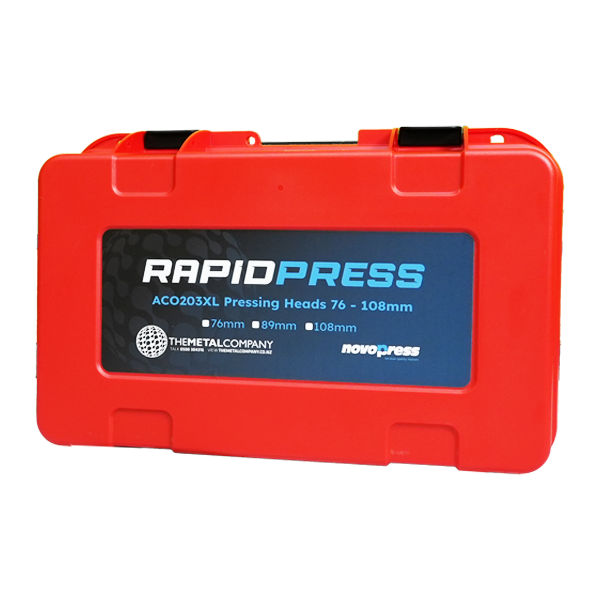

RapidPress Pressing Head Set 76.1-108
RapidPress Pressing Head Set 76.1-108
Features
Full set of Pressing Heads and Adapters from 76.1-108.0 (excludes 88.9mm Pressing Head)
Comes with it's own carrying case
M-Profile

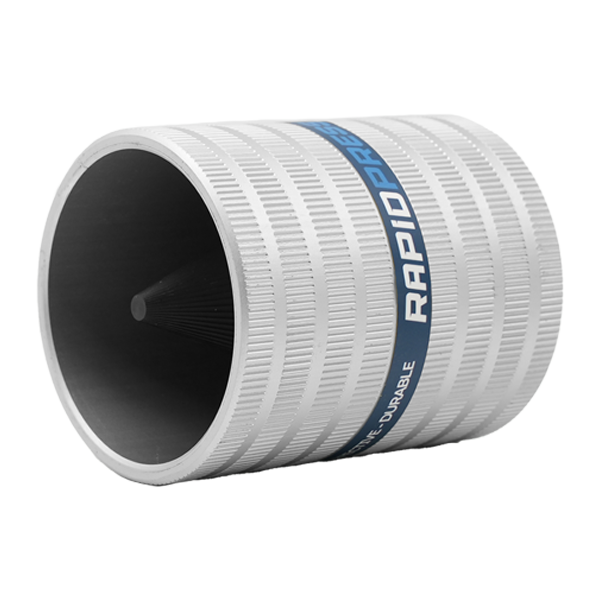

RapidPress Deburrer Tool
RapidPress Deburrer Tool
Features
Suitable for deburring both pipe/tube internals and externals
Can be used with Stainless Steel, Copper, Brass, Aluminium, Plastic and more
VIEW DIMENSIONS

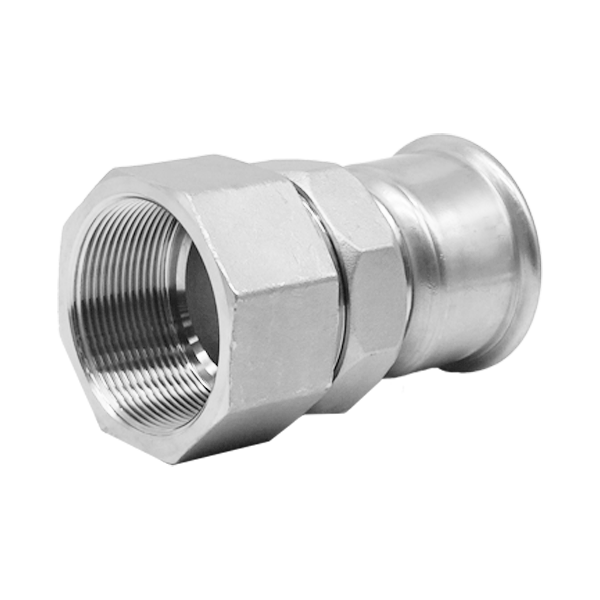

RapidPress Female BSP Union
RapidPress Female BSP Union
Features
EPDM Seals
Female BSP End
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

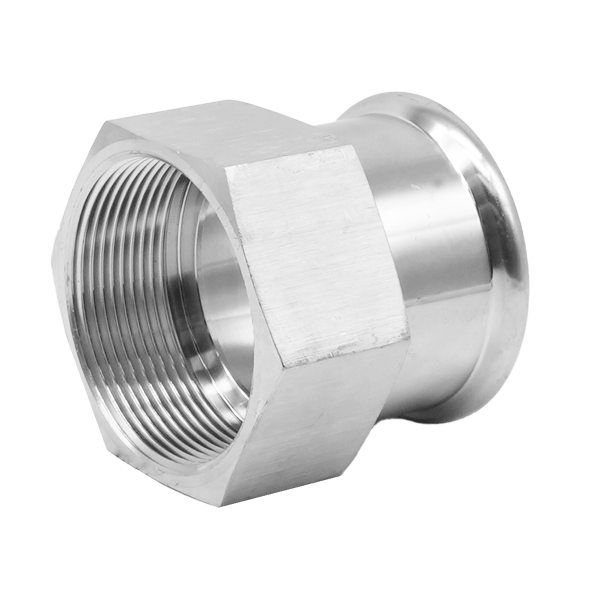

RapidPress Female BSP Coupler
RapidPress Female BSP Coupler
Features
EPDM Seal
Female BSP End
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

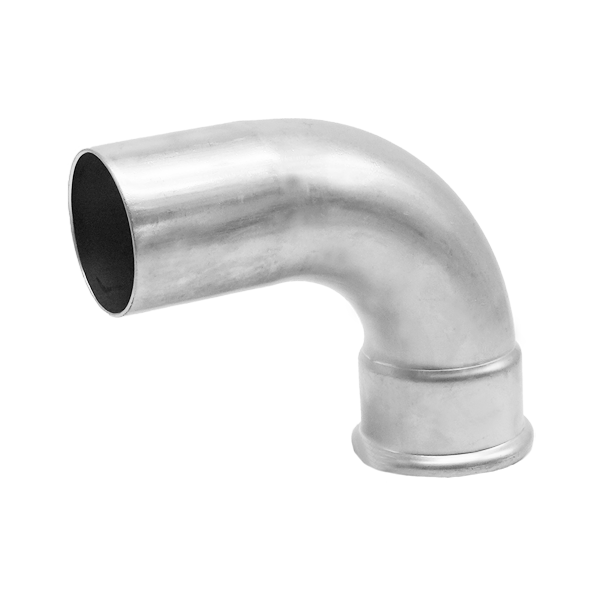

RapidPress Spigot Bend 90°
RapidPress Spigot Bend 90°
Features
EPDM Seals
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

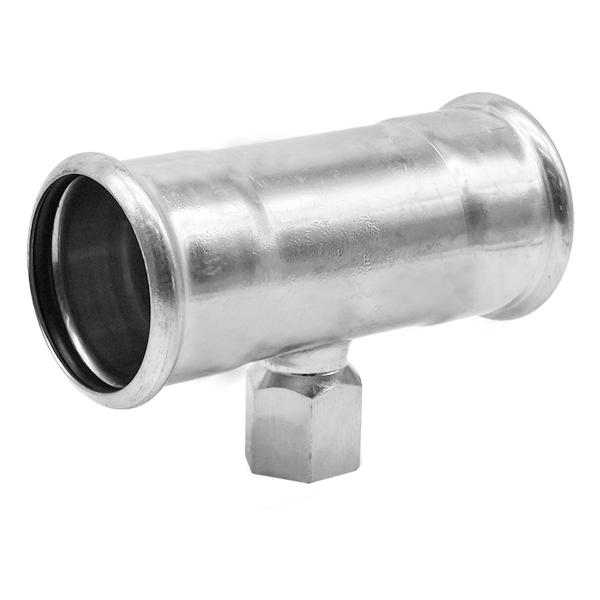

RapidPress Female BSP Tee
RapidPress Female BSP Tee
Features
EPDM Seals
Female BSP Centre Leg
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

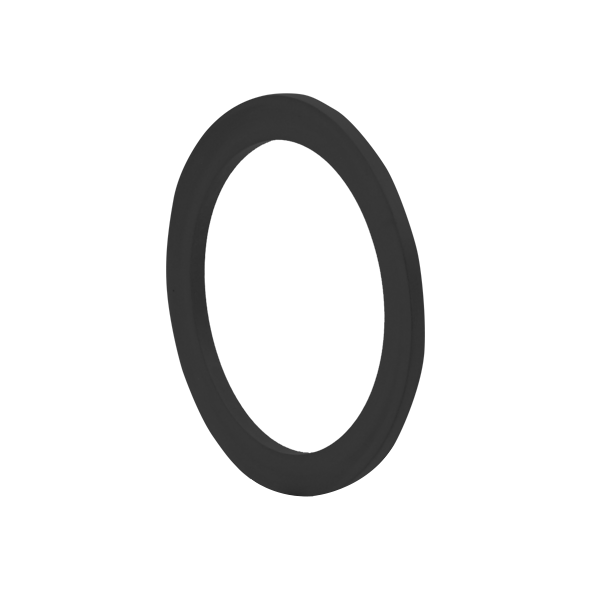

RapidPress M/F Union EPDM Flat Washer
RapidPress M/F Union EPDM Flat Washer
Features
EPDM Flat Washer - Black
For use with RapidPress Male BSP Unions and Female BSP Unions
For standard RapidPress Union Gaskets *without BSP ends* please see our RapidPress EPDM Union Flat Washer
VIEW DIMENSIONS
RapidPress Bossed Saddle
RapidPress Bossed Saddle
Features
M10 Boss (17mm long)
Saddle to suit RapidPress Tube
Includes Stainless Steel Metric Fasteners
Larger sizes are available as Clamps
VIEW DIMENSIONS

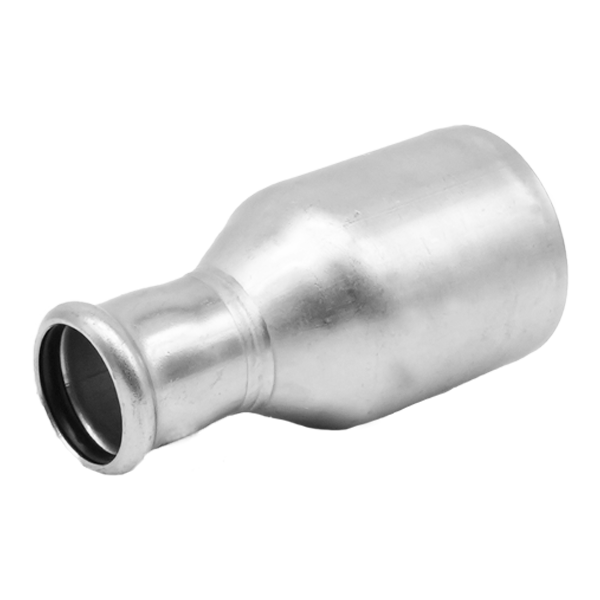

RapidPress Reducing Coupler
RapidPress Reducing Coupler
Features
EPDM Seals
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

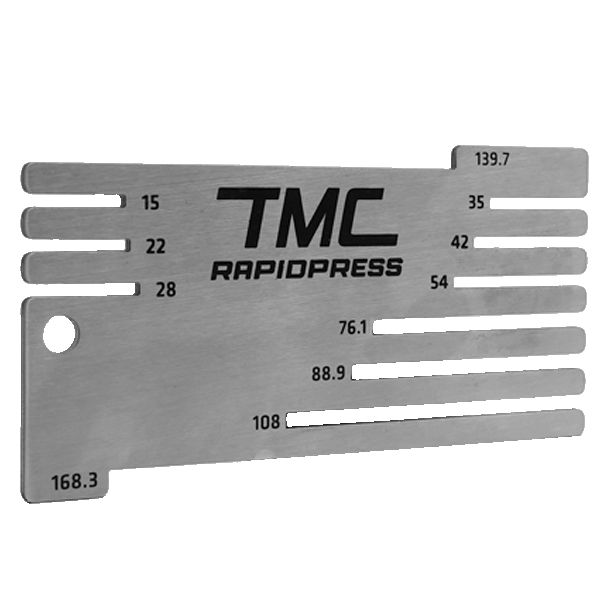

RapidPress Depth Gauge
RapidPress Depth Gauge
Features
Depth Gauge for sizes 15mm to 168.3mm
To ensure a correctly inserted joint, the tube must be witness marked with a fine-point/felt-tip pen where it meets the fitting using the depth gauge so that full insertion can be verified
VIEW DIMENSIONS

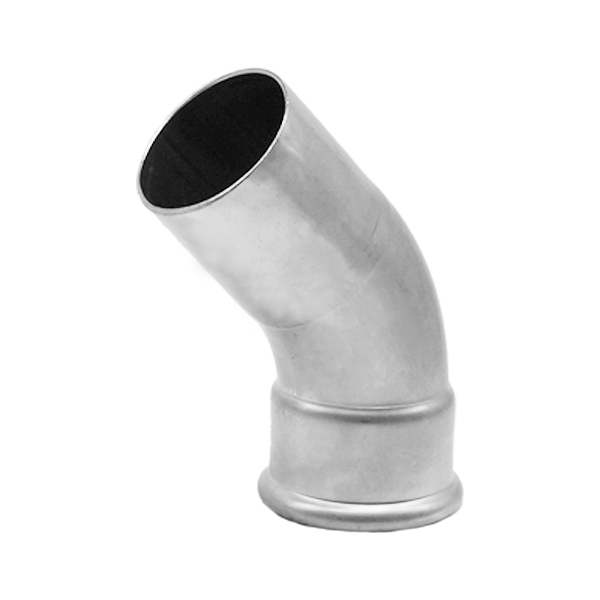

RapidPress Spigot Bend 45°
RapidPress Spigot Bend 45°
Features
EPDM Seals
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS
RapidPress Inox Press-Fit Tube
EN10312/EN10217-7
RapidPress Inox Press-Fit Tube
EN10312/EN10217-7
Features
Suitable for all uses except for with potable water. For potable water capabilites, please see our RapidPress Inox Watermark Approved Press-Fit Tube (RapidPress Inox Press-Fit Tube (WM))
Manufactured to EN10312/EN10217-7
180 Grit Finish
6 metre lengths. Purchase per metre (enter quantity as '6' for 1 length)
VIEW DIMENSIONS
RapidPress Flange PN10-40
RapidPress Flange PN10-40
Features
EPDM Seal
Flange Standard: EN1092-1 Type 01/A
Flanges are forged to: EN10222-5
RapidPress Coupler: 316L
Temperature rating: -20°C, 120°C
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS

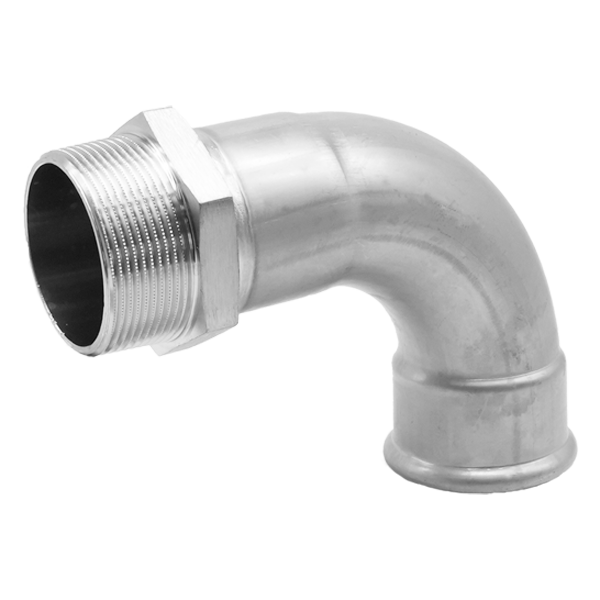

RapidPress Male BSP Bend 90°
RapidPress Male BSP Bend 90°
Features
EPDM Seal
Male BSP End
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
RapidPress Extreme options available
VIEW DIMENSIONS

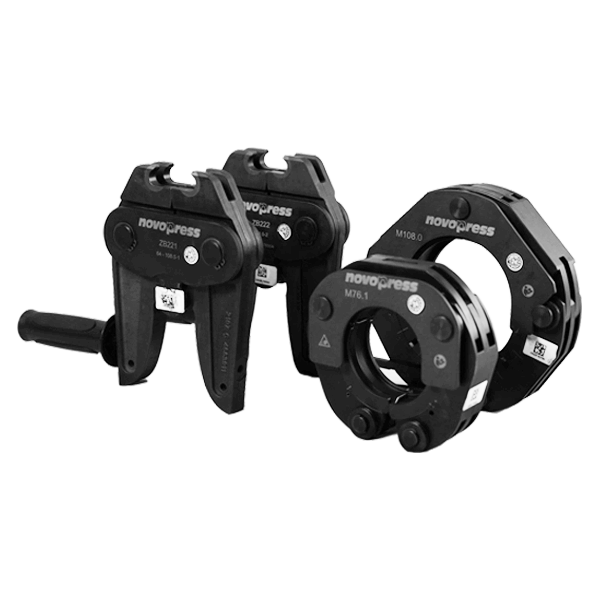

RapidPress Pressing Heads & Adapters 76.1-108
RapidPress Pressing Heads & Adapters 76.1-108
Features
M-Profile
Adapter Jaw (AJ76108) required for use of the 76.1mm & 88.9mm Pressing Head. Also for the initial press for 108.0mm Pressing Head
Adapter Jaw (AJ108) required for the secondary press for the 108.0mm Pressing Head
VIEW DIMENSIONS

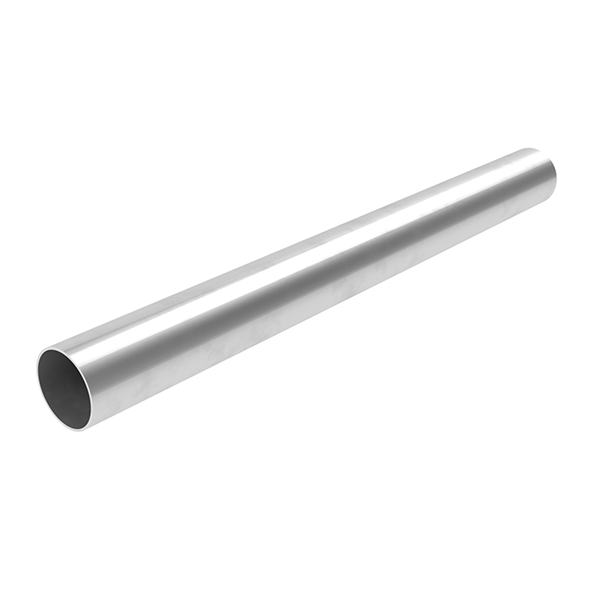

RapidPress Inox Press-Fit Tube (WM)
EN10312/EN10217-7
RapidPress Inox Press-Fit Tube (WM)
EN10312/EN10217-7
Features
Watermark Approved for use with potable water. If potable water applications are not required, please see our RapidPress Inox Press-Fit Tube
Manufactured to EN10312/EN10217-7
180 Grit Finish
6 metre lengths. Purchase per metre (enter quantity as '6' for 1 length)
VIEW DIMENSIONS

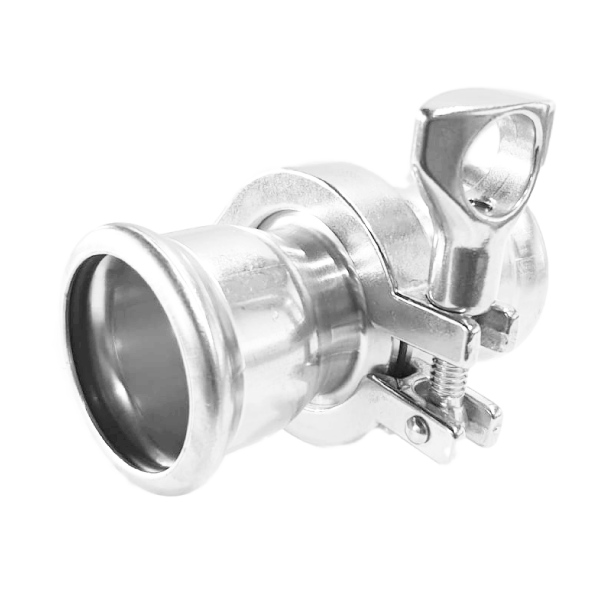

RapidPress Union with Tri Clover
RapidPress Union with Tri Clover
Features
EPDM Seals
Complete Set including: RapidPress Tri Clover Adapter (x2), Tri Clover Clamp (304) and Tri Clover Seal
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
RapidPress Extreme options available
VIEW DIMENSIONS

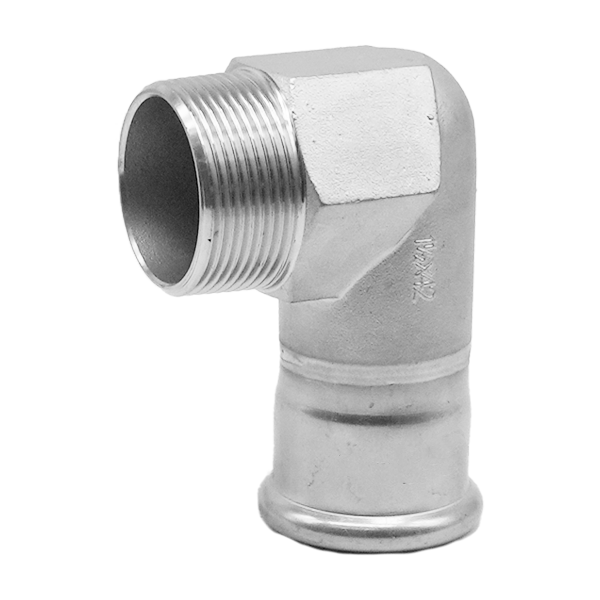

RapidPress Male BSP Elbow 90°
RapidPress Male BSP Elbow 90°
Features
EPDM Seal
Male BSP End
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
RapidPress Extreme options available
VIEW DIMENSIONS

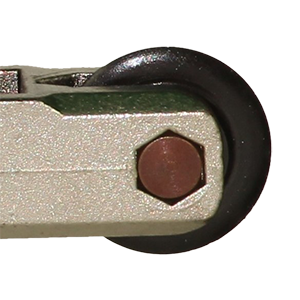

RapidPress Rotary Tube Cutter Blade
RapidPress Rotary Tube Cutter Blade
Features
Replacement wheel blade to suit the RapidPress Rotary Tube Cutter
Suitable for Stainless Steel, Copper and Aluminium tubing
Suitable for sizes from 15mm to 76.2
VIEW DIMENSIONS

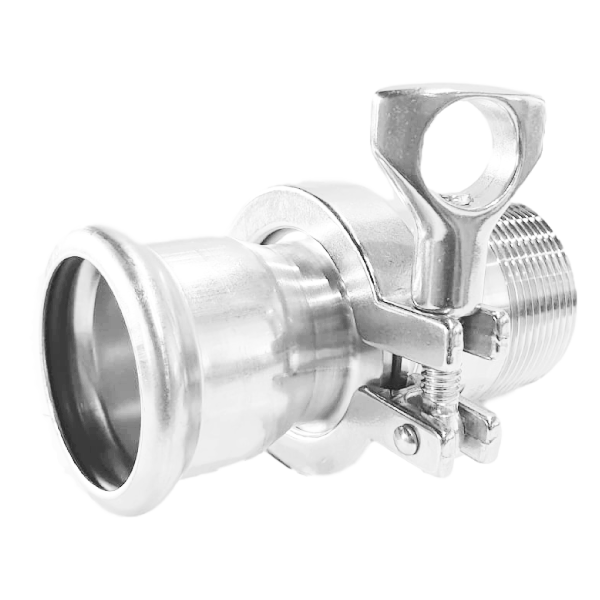

RapidPress to Male BSP Union with Tri Clover
RapidPress to Male BSP Union with Tri Clover
Features
EPDM Seals
Complete Set including: RapidPress Tri Clover Adapter, BSP Nipple to Tri Clover Adapter, Tri Clover Clamp (304) and Tri Clover Seal
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
RapidPress Extreme options available
VIEW DIMENSIONS
RapidPress Flange ANSI150
RapidPress Flange ANSI150
Features
EPDM Seal
Flange Standard: ANSI150 (*)
(*) Please note that these are *Non Standard* ASME B16.5 standard. They are flat faced, and are non hubbed.
Flanges are forged to: ASTM A182 F316L
RapidPress Coupler: 316L
Temperature rating: -20°C, 120°C
Gas Rated and RapidPress Extreme options available
VIEW DIMENSIONS
RapidPress Union with RJT
RapidPress Union with RJT
Features
EPDM Seals
Complete Set including: RapidPress to RJT Male Adapter, RapidPress to RJT Female Adapter, RJT Hex Nut (304) and RJT Stepped Seal (NBR)
Temperature rating: -20°C, 100°C
Maximum operating pressure: 16 Bar (232psi)
RapidPress Extreme options available
VIEW DIMENSIONS
RapidPress to Male BSP Union with RJT
RapidPress to Male BSP Union with RJT
Features
EPDM Seals
Complete Set including: RapidPress to RJT Female Adapter, BSP Nipple to RJT Male Adapter, RJT Hex Nut (304) and RJT Stepped Seal (NBR)
Temperature rating: -20°C, 100°C
Maximum operating pressure: 16 Bar (232psi)
RapidPress Extreme options available
VIEW DIMENSIONS
RapidPress Weld Coupler
RapidPress Weld Coupler
Features
EPDM Seal
RapidPress Coupler to Imperial Tube Butt-Weld
Temperature rating: -20°C, 120°C
RapidPress Extreme options available
VIEW DIMENSIONS
RapidPress Expansion Flange
RapidPress Expansion Flange
Features
EPDM Seal
To suit RapidPress Tube sizes
Fastener hole size: 4mm
Temperature rating: -20°C, 120°C
A purpose designed seal, used when process piping penetrates a wall, floor or ceiling in Food & Beverage Plants or any application where a waterproof hygenic seal is required.
VIEW DIMENSIONS
RapidPress Expansion Compensator
RapidPress Expansion Compensator
Features
EPDM Seals
Measurement 'D' = Maximum amount of expansion length
Temperature rating: -20°C, 120°C
Maximum operating pressure: 16 Bar (232psi)
Refer to page 35 in our RapidPress Technical Guide for our Expansion Compensation Table
RapidPress Extreme options available
VIEW DIMENSIONS
