Valves
Ball Valve Handle
Ball Valve Handle
Features
- Lockable latch handle with blue handle sleeve
- Fits on most 2pc and 3pc Ball Valves and various other valves
Related Products
-
-
BSP Piston Check Valve
BSP Piston Check Valve
Features
- BSP threaded ends
- Maximum pressure 800PSI / 55Bar
- Maximum working Maximum working temperature 230°C
- PTFE seal maximum temperature 250°C
VIEW DIMENSIONS
-
BSP 2pc Ball Valve
BSP 2pc Ball Valve
Features
- BSP threaded ends
- Maximum pressure 1000PSI / 69Bar W.O.G. (Water, Oil, Gas)
- PTFE seal maximum temperature 160°C
- Full port
- Lockable latch handle
- Red handle sleeve available for hot water indication
VIEW DIMENSIONS
-
-
Sanitary Ball Valve
Sanitary Ball Valve
Features
- Butt welds to Outside Diameter tube sizes
- Multi-position handle
- Maximum working temperature 120°C (with EPDM seal)
VIEW DIMENSIONS
-
Table D/E Lugged Butterfly Valve
Table D/E Lugged Butterfly Valve
Features
- Sizes DN40-DN300 are Cast Iron, Sizes DN350-DN400 are Ductile Iron
- Table D/E threaded bolt pattern (metric)
- EPDM seat (Temperature rating -20°C, +120°C)
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- Aluminium handle with ten position stainless steel notch plate (SS304)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
- For sizes DN250+, it is recommended to use with a gearbox for manual operation (kits available for purchase)
VIEW DIMENSIONS
-
Sanitary Non-Return Valve
Sanitary Non-Return Valve
Features
- Butt welds to Outside Diameter tube sizes
- EPDM seal (Food Grade) maximum temperature 120°C
- Centre clamp for easy access
- Spring actioned flow control
VIEW DIMENSIONS
-
-
BSP Needle Valve
BSP Needle Valve
Features
- BSP threaded ends
- PTFE seal maximum temperature rating 200°C
- Maximum pressure 6000PSI / 400Bar
- T handle operation
- 'B' Measurement is taken when the valve is fully open and the handle is at it's highest point
VIEW DIMENSIONS
-
BSP Globe Valve
BSP Globe Valve
Features
- BSP threaded ends
- Maximum pressure 230PSI / 16Bar
- Stainless steel body and gate
- Aluminium handwheel
- No seal
- These are an Isolation valve, not a full Termination valve due to having no seal/gasket
VIEW DIMENSIONS
-
BSP 'Y' Strainer
BSP 'Y' Strainer
Features
- BSP threaded ends
- Temperature Rating: -20°C, +180°C
- Pressure Rating: 40 bar
- Stainless steel body and mesh
- No seal
- Mesh Specs:
- 1,000 microns (micrometres)
- Hole Diameter = 1.0mm
- Hole PCD = 2.0mm
VIEW DIMENSIONS
-
'A' Series Butterfly Valve
'A' Series Butterfly Valve
Features
- Butt welds to Outside Diameter tube sizes
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 150°C (with silicone seal)
- Multi-position trigger handle
- Parts are interchangeable with Keystone F250 valves
VIEW DIMENSIONS
-
'E' Series Butterfly Valve
'E' Series Butterfly Valve
Features
- Butt welds to Outside Diameter tube sizes
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 110°C (with EPDM seal)
- Multi-position handle
- Stainless steel trigger handle available
VIEW DIMENSIONS
-
RJT 'E' Series Butterfly Valve
RJT 'E' Series Butterfly Valve
Features
- RJT Male to RJT Female connection
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 110°C (with EPDM seal)
- Multi-position handle
- Stainless steel trigger handle available
VIEW DIMENSIONS
-
BSP 3pc Ball Valve
BSP 3pc Ball Valve
Features
- BSP threaded ends
- Maximum pressure 1000PSI / 69Bar W.O.G. (Water, Oil, Gas)
- PTFE seal maximum temperature 160°C
- Full port
- Lockable latch handle
- Red handle sleeve available for hot water indication
VIEW DIMENSIONS
-
-
Diaphragm Sampling Valve
Diaphragm Sampling Valve
Features
- Butt weld connection for Outside Diameter tube
- Also available as Tri Clover ferrule connection
- Silicone seal maximum temperature rating 180°C
VIEW DIMENSIONS
-
BSP Vertical Swing Check Valve
BSP Vertical Swing Check Valve
Features
- BSP threaded ends
- Maximum pressure 230PSI / 16Bar
- No seal
- Stainless steel body and disc
- Please note that these only operate in a vertical orientation
VIEW DIMENSIONS
-
-
-
PN10-16 Lugged Butterfly Valve
PN10-16 Lugged Butterfly Valve
Features
- Cast Iron Body
- PN10-16 threaded bolt pattern (metric)
- EPDM seat (Temperature rating -20°C, +120°C)
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- Aluminium handle with ten position stainless steel notch plate (SS304)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
VIEW DIMENSIONS
-
BSP Gate Valve
BSP Gate Valve
Features
- BSP threaded ends
- Maximum pressure 230PSI / 16Bar
- Stainless steel body and gate
- Aluminium handwheel
- No seal
- These are an Isolation valve, not a full Termination valve due to having no seal/gasket
VIEW DIMENSIONS
-
-
RJT Sanitary Non-Return Valve
RJT Sanitary Non-Return Valve
Features
- RJT Male/Female connections
- EPDM seal (Food Grade) maximum temperature 120°C
- Centre clamp for easy access
- Spring actioned flow control
- Flow direction is from RJT female to RJT male
VIEW DIMENSIONS
-
RJT 'A' Series Butterfly Valve
RJT 'A' Series Butterfly Valve
Features
- RJT Male to RJT Female connection
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 150°C (with silicone seal)
- Multi-position trigger handle
- Parts are interchangeable with Keystone F250 valves
VIEW DIMENSIONS
-
Tri Clover 'E' Series Butterfly Valve
Tri Clover 'E' Series Butterfly Valve
Features
- Tri Clover Ferrule connections
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 110°C (with EPDM seal)
- Multi-position handle
- Stainless steel trigger handle available
VIEW DIMENSIONS
-
-
ANSI150 Lugged Butterfly Valve
ANSI150 Lugged Butterfly Valve
Features
- Cast Iron Body
- ANSI 150 threaded bolt pattern (metric)
- EPDM seat (Temperature rating -20°C, +120°C)
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- Aluminium handle with ten position stainless steel notch plate (SS304)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
VIEW DIMENSIONS
-
-
-
BSP 2pc Spring Check Valve
BSP 2pc Spring Check Valve
Features
- BSP threaded ends
- Maximum pressure 230PSI / 16Bar
- No seal
- Stainless steel body and disc
- Retaining Pin for Disc Alignment
- Can be used in a vertical or horizontal orientation
VIEW DIMENSIONS
-
-
-
-
Tri Clover 'A' Series Butterfly Valve
Tri Clover 'A' Series Butterfly Valve
Features
- Tri Clover Ferrule connection
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 150°C (with silicone seal)
- Multi-position trigger handle
- Parts are interchangeable with Keystone F250 valves
VIEW DIMENSIONS
-
-
-
-
-

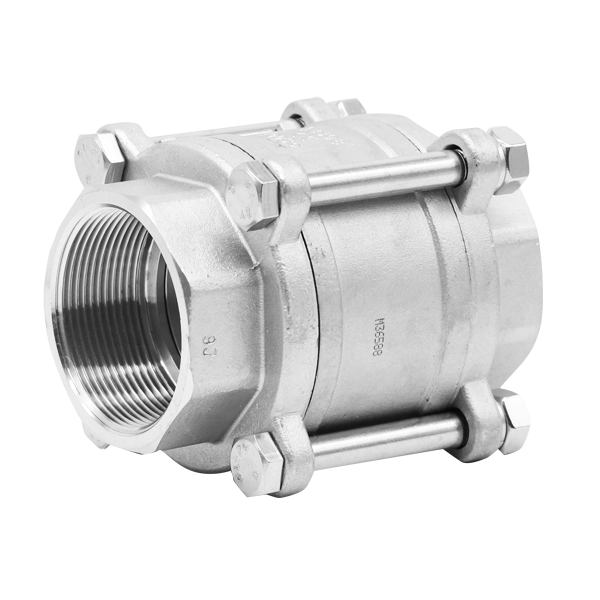

BSP 3pc Spring Check Valve
BSP 3pc Spring Check Valve
Features
- BSP threaded ends
- Maximum pressure 580PSI / 40Bar
- No seal
- Stainless steel body and disc
- No Retaining Pin for Disc Alignment
- Can only be used in a vertical orientation
VIEW DIMENSIONS
-
-
-
Wafer Butterfly Valve
Wafer Butterfly Valve
Features
- Cast Iron Body
- Suits most flange bolt patterns including, Table D/E, PN10-16 & ANSI 150
- PCD is measured from a range of smallest to largest PCD measured with Table D/E, PN10-16 & ANSI 150
- EPDM seat (Temperature rating -20°C, +120°C)
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- Aluminium handle with ten position stainless steel notch plate (SS304)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
VIEW DIMENSIONS
-
RapidPress 3pc Ball Valve
RapidPress 3pc Ball Valve
Features
- EPDM Seals
- RapidPress Coupler Connections
- Full Port
- Lockable latch handle
- Temperature Rating: -20°C, 120°C
- Red handle sleeves available for purchase
- RapidPress Extreme options available
- **Please note: 76.1x65NB has been fabricated from a standard 65NB BSP Ball Valve and two 76.1 RapidPress Weld Couplers**
VIEW DIMENSIONS
-
Inline Non-Return Valve
Inline Non-Return Valve
Features
- Able to be clamped in centre of union for easy access
- Maximum pressure 145PSI / 10Bar
- Maximum working temperature 120°C (with EPDM seal)
- Spring actioned flow control
- Can be used with Tri Clover and RJT unions
VIEW DIMENSIONS
-
-
Table E Lugged Butterfly Valve with Gearbox
Table E Lugged Butterfly Valve with Gearbox
Features
- Sizes DN250-DN300 are Cast Iron, Sizes DN350-DN400 are Ductile Iron
- Table E threaded bolt pattern (metric)
- EPDM seat (Temperature rating -20°C, +120°C)
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
VIEW DIMENSIONS
-
-
Table E Wafer Butterfly Valve Bolt Kit
Table E Wafer Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting two Table E Flanges together with a Wafer Butterfly Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
-
-
-
-
Wafer Butterfly Valve with Gearbox
Wafer Butterfly Valve with Gearbox
Features
- Cast Iron Body
- Suits most flange bolt patterns including, Table D/E, PN10-16 & ANSI 150
- PCD is measured from a range of smallest to largest PCD measured with Table D/E, PN10-16 & ANSI 150
- EPDM seat (Temperature rating -20°C, +120°C)
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- Aluminium handle with ten position stainless steel notch plate (SS304)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
VIEW DIMENSIONS
-
BSP 'L' Port Ball Valve
BSP 'L' Port Ball Valve
Features
- BSP threaded ends
- Maximum pressure 1000PSI / 69Bar W.O.G. (Water, Oil, Gas)
- PTFE seal maximum temperature 250°C
- Lockable latch handle
- ISO5211 mounting pad - These do not fit to actuators but can be used for mounting to wall or panels
- Reduced port
- 3 way valves from 2 1/2" to 4" will differ from image shown
VIEW DIMENSIONS
-
BSP Sampling Valve
BSP Sampling Valve
Features
- BSP threaded end
- Maximum temperature rating 120°C
- PTFE seal maximum temperature 200°C
- Maximum pressure 145PSI / 10Bar
VIEW DIMENSIONS
-
Table D Wafer Butterfly Valve Bolt Kit
Table D Wafer Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting two Table D Flanges together with a Wafer Butterfly Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
BSP 'T' Port Ball Valve
BSP 'T' Port Ball Valve
Features
- BSP threaded ends
- Maximum pressure 1000PSI / 69Bar W.O.G. (Water, Oil, Gas)
- PTFE seal maximum temperature 250°C
- Lockable latch handle
- ISO5211 mounting pad - These do not fit to actuators but can be used for mounting to wall or panels
- Reduced port
- 3 way valves from 2 1/2" to 4" will differ from image shown
VIEW DIMENSIONS
-
-
-
-
PN10-16 Wafer Butterfly Valve Bolt Kit
PN10-16 Wafer Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting two PN10-40 Flanges together with a Wafer Butterfly Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
-
-
-
ANSI150 Wafer Butterfly Valve Bolt Kit
ANSI150 Wafer Butterfly Valve Bolt Kit
Features
- Bolt Kit to suit bolting two ANSI150 Flanges together with a Wafer Butterfly Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
Wafer Double Gate Check Valve
Wafer Double Gate Check Valve
Features
- Cast Iron Body
- Suitable for use with all flanges, including Table D/E, PN10-16 & ANSI 150
- EPDM seat (Temperature rating -20°C, +120°C)
- Resilient Seated
- Nominal Pressure - 1.6 Mpa (16 bar)
- CF8M disc (SS316)
- Epoxy resin powder paint according to ISO 21809
VIEW DIMENSIONS
-
Red Ball Valve Handle Sleeve
Red Ball Valve Handle Sleeve
Features
- Red handle sleeve available for hot water indication (Sleeve only, handle not included)
- Fits on most 2pc and 3pc Ball Valves and various other valves
VIEW DIMENSIONS
-
-
Table E Wafer Check Valve Bolt Kit
Table E Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two Table E Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
Table E 'Y' Strainer
Table E 'Y' Strainer
Features
- Ductile Iron Body
- Table E bolt pattern
- Nominal Pressure - 1.6 Mpa (16 bar)
- Drain Plug on Cover
- Graphite Cover Gasket
- Graphite temperature rating -10°C to 230°C
- Epoxy resin powder paint according to ISO 21809
VIEW DIMENSIONS
-
-
-
Table D Wafer Check Valve Bolt Kit
Table D Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two Table D Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
PN10-40 Wafer Check Valve Bolt Kit
PN10-40 Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two PN10-40 Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
ANSI150 Wafer Check Valve Bolt Kit
ANSI150 Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two ANSI150 Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
ANSI300 Wafer Check Valve Bolt Kit
ANSI300 Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two ANSI300 Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
AS4087 Wafer Check Valve Bolt Kit
AS4087 Wafer Check Valve Bolt Kit
Features
- Bolt Kit to suit bolting two AS4087 Flanges together with a Wafer Check Valve in between.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
Table E Y Strainer Bolt Kit
Table E Y Strainer Bolt Kit
Features
- Bolt Kit to suit bolting a Table E Flange to one side of a Table E Y Strainer.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
PN16 Isolating Regulating Valve Bolt Kit
PN16 Isolating Regulating Valve Bolt Kit
Features
- Bolt Kit to suit bolting a PN10-40 Flange to one side of a PN16 Isolating Regulating Valve.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
-
Table E Expansion Bellow Bolt Kit
Table E Expansion Bellow Bolt Kit
Features
- Bolt Kit to suit bolting a Table E Flange to one side of a Table E Expansion Bellow.
- For Kit contents, click View Dimensions
- A: Bolts
- B: Hex Nuts
- C: Flat Washers
VIEW DIMENSIONS
