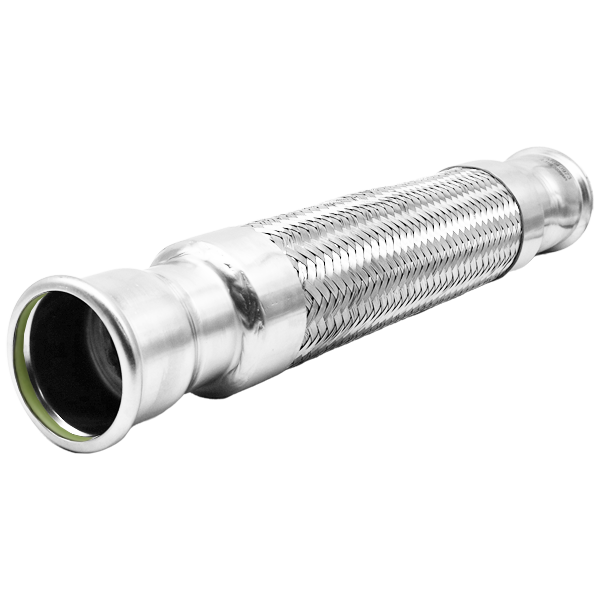

FlexiFlow Hose with RapidPress Couplers

Features

**Please allow 1-2 days lead time for fabrication**
FlexiFlow Stainless Steel Convoluted Braided Hose
Connections: RapidPress Couplers
Hose Test Standard: ISO 10380-2012
Hose Designation: TYPE 1-10
Click 'View Dimensions' for the following information:
A = Total Length
B = Hose ID
C = Braid OD
D = Static/Flexing Minimum Bend Radius (mm)
E = Working/Test Pressure (bar) *Applies to Hose Only, Not End Connections*

Code	Metric Size Code	Grade	A	B	C	D	E	F	PRC Price
RPFF28300	28.0x300 RPFF28300	316 (304 BRAID)	28.0	364.0	25.4	33.7	85/190	49/73	$182.08
RPFF28500	28.0x500 RPFF28500	316 (304 BRAID)	28.0	564.0	25.4	33.7	85/190	49/73	$207.04
RPFF28750	28.0x750 RPFF28750	316 (304 BRAID)	28.0	814.0	25.4	33.7	85/190	49/73	$232.96
RPFF281000	28.0x1000 RPFF281000	316 (304 BRAID)	28.0	1064.0	25.4	33.7	85/190	49/73	$264.64
RPFF281500#	28.0x1500 RPFF281500#	316 (304 BRAID)	28.0	1564.0	25.4	33.7	85/190	49/73	$340.48
RPFF42300	42.0x300 RPFF42300	316 (304 BRAID)	42.0	376.0	40.1	51.1	130/300	34/51	$297.80
RPFF42500	42.0x500 RPFF42500	316 (304 BRAID)	42.0	576.0	40.1	51.1	130/300	34/51	$343.88
RPFF42750	42.0x750 RPFF42750	316 (304 BRAID)	42.0	826.0	40.1	51.1	130/300	34/51	$402.44
RPFF421000	42.0x1000 RPFF421000	316 (304 BRAID)	42.0	1076.0	40.1	51.1	130/300	34/51	$456.20
RPFF421500#	42.0x1500 RPFF421500#	316 (304 BRAID)	42.0	1576.0	40.1	51.1	130/300	34/51	$575.62
RPFF54300	54.0x300 RPFF54300	316 (304 BRAID)	54.0	386.0	50.3	62.3	160/320	29/44	$394.00
RPFF54500	54.0x500 RPFF54500	316 (304 BRAID)	54.0	586.0	50.3	62.3	160/320	29/44	$448.72
RPFF54750	54.0x750 RPFF54750	316 (304 BRAID)	54.0	836.0	50.3	62.3	160/320	29/44	$518.80
RPFF541000	54.0x1000 RPFF541000	316 (304 BRAID)	54.0	1086.0	50.3	62.3	160/320	29/44	$591.76
RPFF541500#	54.0x1500 RPFF541500#	316 (304 BRAID)	54.0	1586.0	50.3	62.3	160/320	29/44	$735.76
RPFF76300	76.1x300 RPFF76300	316 (304 BRAID)	76.1	440.0	80.3	97.0	200/450	17/26	$835.60
RPFF76500	76.1x500 RPFF76500	316 (304 BRAID)	76.1	640.0	80.3	97.0	200/450	17/26	$921.04
RPFF76750	76.1x750 RPFF76750	316 (304 BRAID)	76.1	890.0	80.3	97.0	200/450	17/26	$1018.00
RPFF761000	76.1x1000 RPFF761000	316 (304 BRAID)	76.1	1140.0	80.3	97.0	200/450	17/26	$1210.00
RPFF108300	108.0x300 RPFF108300	316 (304 BRAID)	108.0	486.0	100.8	119.0	290/560	15/23	$1196.16
RPFF108500	108.0x500 RPFF108500	316 (304 BRAID)	108.0	686.0	100.8	119.0	290/560	15/23	$1301.76
RPFF108750	108.0x750 RPFF108750	316 (304 BRAID)	108.0	936.0	100.8	119.0	290/560	15/23	$1430.40
RPFF1081000	108.0x1000 RPFF1081000	316 (304 BRAID)	108.0	1186.0	100.8	119.0	290/560	15/23	$1632.00
